Back to Bike FinderYears: 2017
2017Scooter

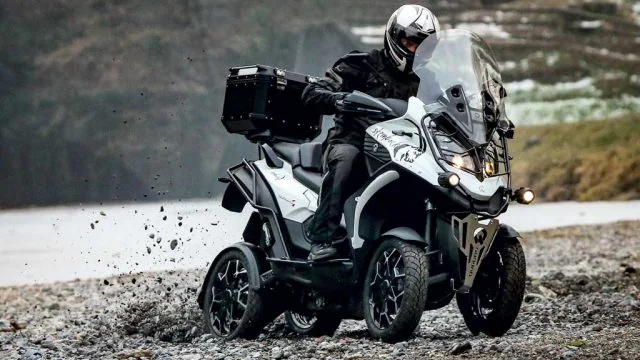

Quadro 4 Steinbock
Key specifications
Engine
346 cc
Power
30 HP
Torque
25 Nm
Weight
257 kg
Fuel type
petrol
Fuel capacity
3.7 L
Seat height
30 mm
Front brakes
Double disc
Rear brakes
Double disc
Technical details
Source specification data
- Make
- Quadro
- Model
- 4 Steinbock
- Category
- Scooter
- Starter
- Electric
- Comments
- Two
- front and rear wheels.
- Windshied
- .
- Can
- be driven with a car driving license in
- Europe
- .
- Swiss
- brand.
- Color Options
- White
- Carrying Capacity
- Under
- -seat storage.
- Two
- front compartments.
- Power
- 30.00 HP (21.9 kW)) @ 7500 RPM
- Clutch
- Automatic dry centrifugal
- Torque
- 24.50 Nm (2.5 kgf-m or 18.1 ft.lbs) @ 5000 RPM
- Driveline
- Dual
- drive timing belt.
- Primary
- drive:
- Automatic (CVT)
- with integrated differential.
- Fuel System
- Injection
- Bore X Stroke
- 82.0 x 65.5 mm (3.2 x 2.6 inches)
- Displacement
- 346.00 ccm (21.11 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 4
- Fuel Consumption
- 4.70 litres/100 km (21.3 km/l or 50.05 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Trochoid pump, wet-sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 257.0 kg (566.6 pounds)
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,340 mm (52.8 inches)
- Overall Length
- 2,180 mm (85.8 inches)
- Power Weight Ratio
- 0.1167 HP/kg
- Rear Tyre
- 110/80-14
- Frame Type
- Steel tubes
- Front Tyre
- 110/80-14
- Rear Brakes
- Double disc
- Front Brakes
- Double disc
- Rear Suspension
- HTS (oleo-pneumatic tilting suspension)
- Front Suspension
- HTS (oleo-pneumatic tilting suspension)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
White
