Back to Bike FinderYears: 2023 · 2022 · 2021 · 2020
2023Allround

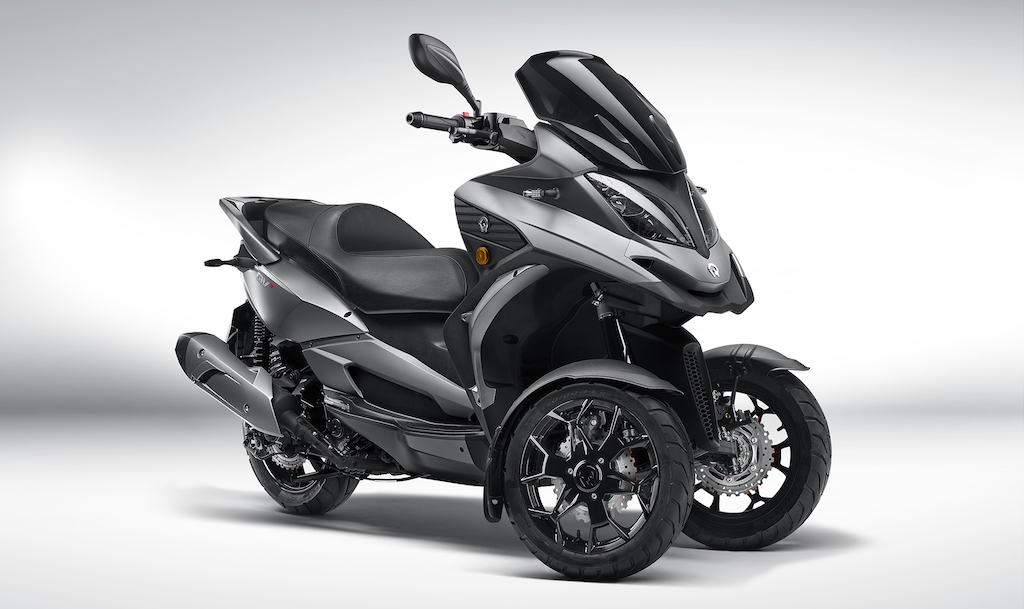

Quadro QV3
Key specifications
Engine
346 cc
Power
28 HP
Torque
32 Nm
Fuel type
petrol
Fuel capacity
3.5 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc. One disk per wheel
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Qooder
- Model
- QV3
- Category
- Allround
- Light
- Halogen Headlight
- Starter
- Electric
- Comments
- Windscreen
- . 3 tilting wheels.
- Steering
- angle 35°.
- Engineered
- in
- Switzerland
- .
- Instruments
- LCD instruments
- Color Options
- Glossy Snow
- white,
- Glossy Swiss
- red
- Matte Alps
- green,
- Matte Titanium
- grey
- Matte Raw
- black
- Carrying Capacity
- Underseat storage
- Power
- 28.4 HP (20.8 kW)) @ 7000 RPM
- Clutch
- Automatic dry centrifugal
- Torque
- 31.8 Nm (3.2 kgf-m or 23.5 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- electronic
- Driveline
- Rear two wheel drive
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 82.0 x 65.5 mm (3.2 x 2.6 inches)
- Displacement
- 346.0 ccm (21.11 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 4
- Fuel Consumption
- 4.10 litres/100 km (24.4 km/l or 57.37 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Trochoid pump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt (final drive)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.20 litres (3.49 US gallons)
- Overall Width
- 840 mm (33.1 inches)
- Overall Height
- 1310 mm (51.6 inches)
- Overall Length
- 2270 mm (89.4 inches)
- Weight Incl Oil Gas Etc
- 220.0 kg (485.0 pounds)
- Seat
- Dual seat
- Wheels
- Two tilting front wheels, single rear wheel
- Rear Tyre
- 140/70-15
- Frame Type
- Steel tubes
- Front Tyre
- 110/80-14
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. One disk per wheel
- Rear Suspension
- Twin preload adjustable hydraulic shock-absorber
- Front Suspension
- Double electronic HTSTM (Hydraulic Tilting System)
- Rear Brakes Diameter
- 256 mm (10.1 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Glossy Snow whiteGlossy Swiss red Matte Alps greenMatte Titanium grey Matte Raw black
