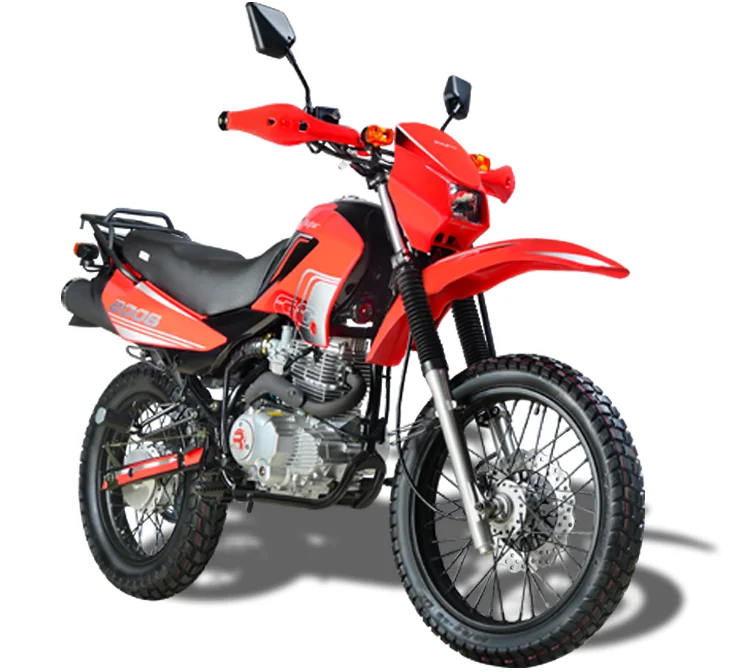

Raybar 200B
Key specifications
Engine
200 cc
Power
13 HP
Torque
14 Nm
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Raybar
- Model
- 200B
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Chinese brand.
- Color Options
- Red, black, white
- Power
- 13.4 HP (9.8 kW)) @ 8000 RPM
- Clutch
- Wet multiplate
- Torque
- 14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Top Speed
- 90.0 km/h (55.9 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor. PZ30
- Bore X Stroke
- 63.5 x 62.2 mm (2.5 x 2.4 inches)
- Compression
- 8.8:1
- Displacement
- 200.0 ccm (12.20 cubic inches)
- Cooling System
- Air
- Fuel Consumption
- 2.90 litres/100 km (34.5 km/l or 81.11 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Fuel Capacity
- 10.00 litres (2.64 US gallons)
- Overall Width
- 815 mm (32.1 inches)
- Overall Height
- 1160 mm (45.7 inches)
- Overall Length
- 2070 mm (81.5 inches)
- Ground Clearance
- 257 mm (10.1 inches)
- Weight Incl Oil Gas Etc
- 150.0 kg (330.7 pounds)
- Rear Tyre
- 110/90-17
- Front Tyre
- 90/90-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Mono Shocker
- Front Suspension
- Telescopic
Available colors
Redblackwhite
