Back to Bike FinderYears: 2020
2020Off-road

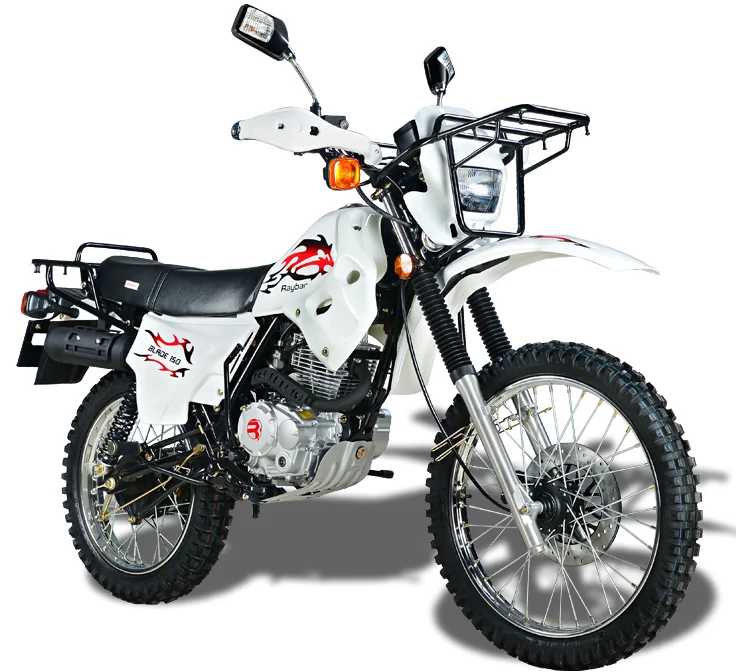

Raybar Blade 150
Key specifications
Engine
150 cc
Power
11 HP
Torque
10 Nm
Fuel type
petrol
Fuel capacity
2.1 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Raybar
- Model
- Blade 150
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Chinese brand.
- Color Options
- Red, black, white
- Power
- 11.0 HP (8.0 kW)) @ 8000 RPM
- Clutch
- Wet multiplate
- Torque
- 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Top Speed
- 90.0 km/h (55.9 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor. PZ27
- Bore X Stroke
- 62.0 x 49.5 mm (2.4 x 1.9 inches)
- Compression
- 9.1:1
- Displacement
- 150.0 ccm (9.15 cubic inches)
- Cooling System
- Air
- Fuel Consumption
- 2.30 litres/100 km (43.5 km/l or 102.27 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Fuel Capacity
- 8.00 litres (2.11 US gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 1230 mm (48.4 inches)
- Overall Length
- 2150 mm (84.6 inches)
- Ground Clearance
- 280 mm (11.0 inches)
- Weight Incl Oil Gas Etc
- 110.0 kg (242.5 pounds)
- Rear Tyre
- 4.1-18
- Front Tyre
- 2.75-21
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Spring Coil
- Front Suspension
- Telescopic
Available colors
Redblackwhite
