Back to Bike FinderYears: 2020
2020Off-road

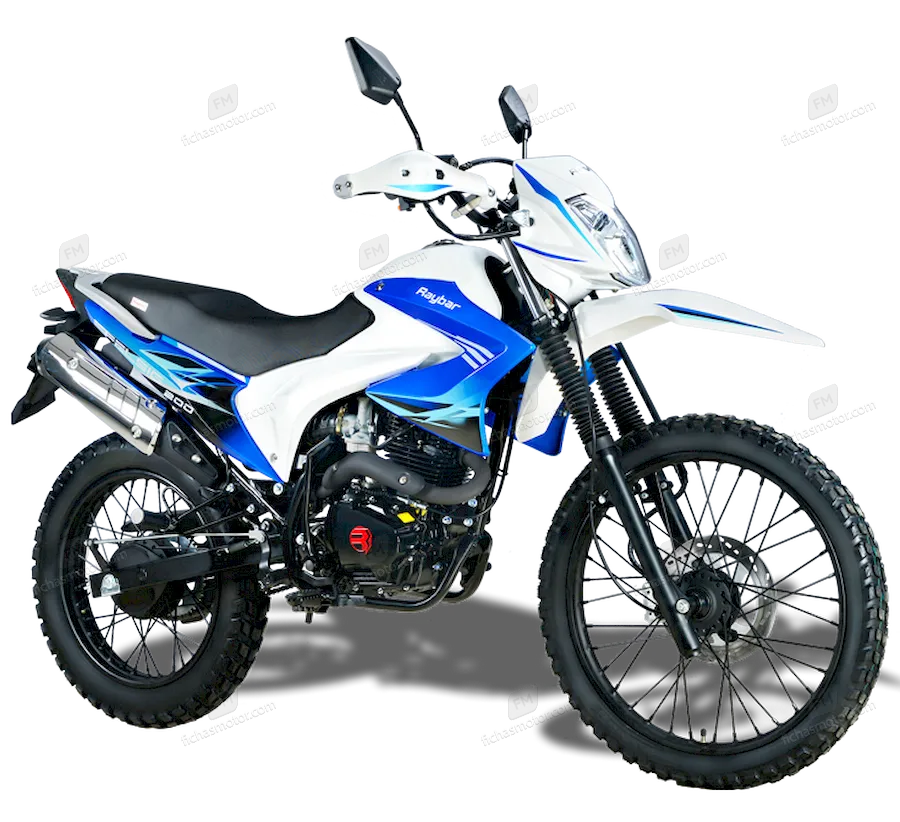

Raybar Felsig 200
Key specifications
Engine
200 cc
Power
14 HP
Torque
14 Nm
Fuel type
petrol
Fuel capacity
3.0 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Raybar
- Model
- Felsig 200
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Chinese brand.
- Color Options
- Red, grey, white
- Power
- 13.7 HP (10.0 kW)) @ 7500 RPM
- Clutch
- Wet multiplate
- Torque
- 14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Top Speed
- 100.0 km/h (62.1 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor. PZ30
- Bore X Stroke
- 63.5 x 62.0 mm (2.5 x 2.4 inches)
- Compression
- 8.6:1
- Displacement
- 200.0 ccm (12.20 cubic inches)
- Cooling System
- Air
- Fuel Consumption
- 2.40 litres/100 km (41.7 km/l or 98.01 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Fuel Capacity
- 11.50 litres (3.04 US gallons)
- Overall Width
- 885 mm (34.8 inches)
- Overall Height
- 1160 mm (45.7 inches)
- Overall Length
- 2210 mm (87.0 inches)
- Ground Clearance
- 265 mm (10.4 inches)
- Weight Incl Oil Gas Etc
- 150.0 kg (330.7 pounds)
- Rear Tyre
- 4.6-18
- Front Tyre
- 2.75-21
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Mono Shocker
- Front Suspension
- Telescopic
Available colors
Redgreywhite
