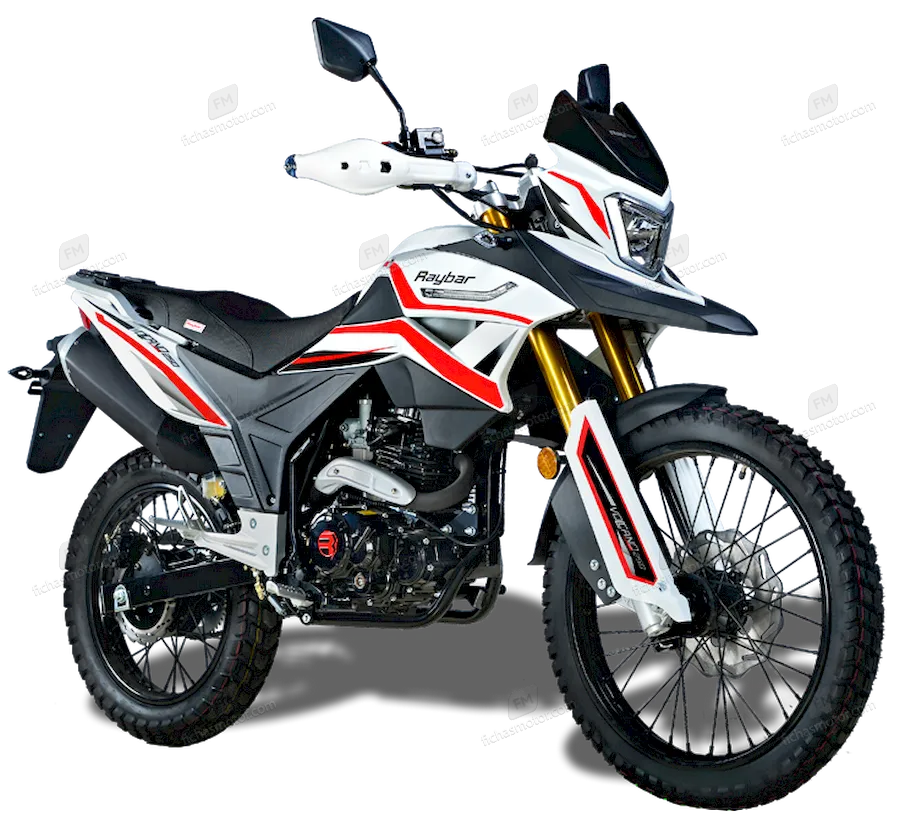

Raybar Volcano 250
Key specifications
Engine
250 cc
Power
17 HP
Torque
19 Nm
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Raybar
- Model
- Volcano 250
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Chinese brand.
- Color Options
- Red, black, white
- Power
- 17.4 HP (12.7 kW)) @ 7500 RPM
- Clutch
- Wet multiplate
- Torque
- 18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Top Speed
- 105.0 km/h (65.2 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor. PZ30
- Bore X Stroke
- 70.0 x 65.0 mm (2.8 x 2.6 inches)
- Compression
- 9.0:1
- Displacement
- 250.0 ccm (15.26 cubic inches)
- Cooling System
- Air
- Fuel Consumption
- 2.50 litres/100 km (40.0 km/l or 94.09 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Fuel Capacity
- 12.00 litres (3.17 US gallons)
- Overall Width
- 790 mm (31.1 inches)
- Overall Height
- 1270 mm (50.0 inches)
- Overall Length
- 2270 mm (89.4 inches)
- Ground Clearance
- 290 mm (11.4 inches)
- Weight Incl Oil Gas Etc
- 152.0 kg (335.1 pounds)
- Rear Tyre
- 4.6-18
- Front Tyre
- 3-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Mono Shocker
- Front Suspension
- Telescopic
Available colors
Redblackwhite
