Back to Bike FinderYears: 2011 · 2010
2011Cruiser

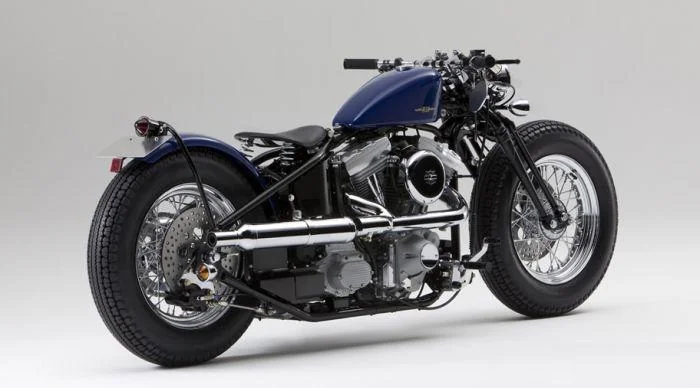

Road Hopper Type 5i Evo
Key specifications
Engine
1337 cc
Weight
230 kg
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
5-speed
Seat height
26 mm
Front brakes
Single disc. HD 1-Piston
Rear brakes
Single disc. Wilwood 2-P
Technical details
Source specification data
- Make
- Road Hopper
- Model
- Type 5i Evo
- Category
- Custom-cruiser
- Light
- 12V 55/60 W headlight
- Starter
- Electric
- Comments
- Made
- in
- Japan
- by by
- Zero Engineering
- .
- See
- also
- Samurai Choppers
- .
- D
- :
- A
- .
- A
- variant called 5i
- O Open
- primary is available.
- Electrical
- 12V 19 Ah battery
- Color Options
- Blue, red, yellow, black.
- Clutch
- Wet multiplate coil spring
- Gearbox
- 5-speed
- Driveline
- Chain drive 530-102L
- Bore X Stroke
- 88.0 x 108.0 mm (3.5 x 4.3 inches)
- Compression
- 8.5:1
- Displacement
- 1337.00 ccm (81.58 cubic inches)
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 230.0 kg (507.1 pounds)
- Seat Height
- 660 mm (26.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.80 litres (0.18 quarts)
- Fuel Capacity
- 7.00 litres (1.85 gallons)
- Overall Width
- 720 mm (28.3 inches)
- Overall Length
- 2,300 mm (90.6 inches)
- Ground Clearance
- 100 mm (3.9 inches)
- Rake
- 33.2°
- Seat
- Single person seat
- Rear Tyre
- 5.00-16
- Frame Type
- ZERO Original Design
- Front Tyre
- 5.00-16
- Rear Brakes
- Single disc. Wilwood 2-P
- Front Brakes
- Single disc. HD 1-Piston
- Front Suspension
- 74 Springer
Available colors
Blueredyellowblack.
