2016Off-road

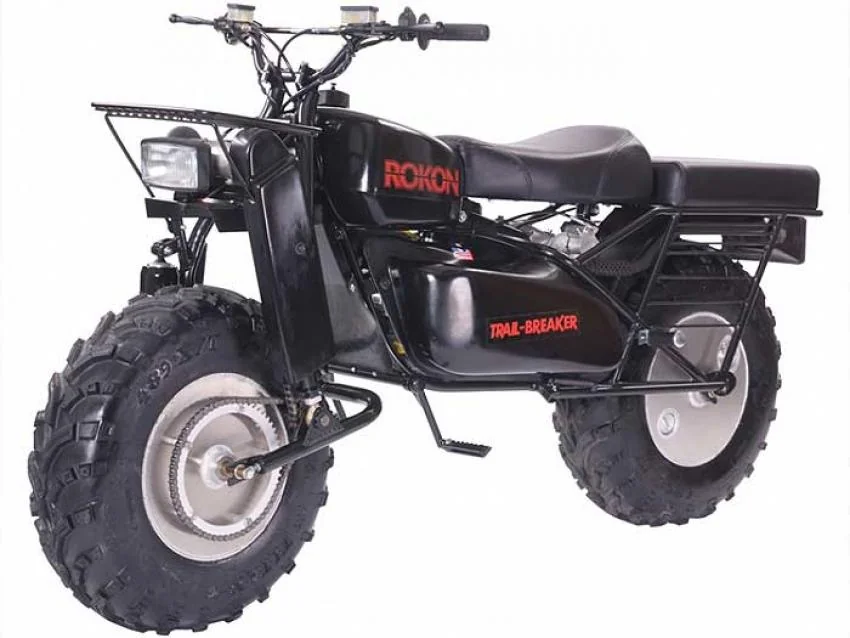

Rokon Trail-Breaker
$7,350
Key specifications
Engine
208 cc
Power
7 HP
Torque
12 Nm
Weight
99 kg
Fuel type
petrol
Fuel capacity
3.0 L
Transmission
3-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Rokon
- Model
- Trail-Breaker
- Price
- S
- $ 7350.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Full
- time,
- Front
- and
- Rear
- wheel drive.
- Hollow
- drum wheels can provide floatation or space for up to 2.5 gallons of extra fuel or water.
- Electrical
- 12 Volt
- Color Options
- Black, olive, yellow, red, orange, forest green
- Factory Warranty
- 12 Month Limited Warranty
- Power
- 7.00 HP (5.1 kW)) @ 3600 RPM
- Torque
- 12.40 Nm (1.3 kgf-m or 9.1 ft.lbs) @ 2800 RPM
- Gearbox
- 3-speed
- Ignition
- Electronic Magneto
- Top Speed
- 56.0 km/h (34.8 mph)
- Driveline
- Both front and rear wheel drive
- Engine Type
- Kohler fan cooled engine
- Fuel System
- Carburettor. Fixed Main Jet Carburetor
- Displacement
- 208.00 ccm (12.69 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Muffler
- with
- S Forestry
- approved spark arrestor
- Fuel Consumption
- 0.45 litres/100 km (222.2 km/l or 522.71 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain
- Dry Weight
- 98.8 kg (217.8 pounds)
- Seat Height
- 813 mm (32.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 11.36 litres (3.00 gallons)
- Overall Width
- 787 mm (31.0 inches)
- Overall Length
- 2,007 mm (79.0 inches)
- Ground Clearance
- 381 mm (15.0 inches)
- Power Weight Ratio
- 0.0709 HP/kg
- Wheels
- Aluminum
- Rear Tyre
- 5.90-15
- Front Tyre
- 5.90-15
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Single spring
- Front Suspension
- Twin springs
Available colors
Blackoliveyellowredorangeforest green
