2012Cruiser

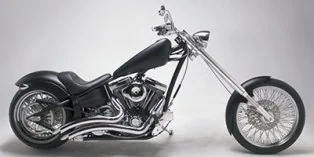

Saxon Warlord
Key specifications
Engine
1566 cc
Weight
285 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
21 mm
Front brakes
Single disc. Bremo, 4-piston caliper
Rear brakes
Single disc. Bremo, 2-piston caliper
Technical details
Source specification data
- Make
- Saxon
- Model
- Warlord
- Category
- Custom-cruiser
- Starter
- Electric
- Electrical
- 550 CCA battery. 32 Amp charger.
- Instruments
- Digital with integrated tach
- Factory Warranty
- 2-Year Factory Warranty
- Gearbox
- 6-speed
- Ignition
- electronic
- Driveline
- Chain primary drive. Right-side drive.
- Engine Type
- 45 degree V-Twin
- Fuel System
- Carburettor. Minuni HSR 42
- Bore X Stroke
- 94.0 x 119.4 mm (3.7 x 4.7 inches)
- Compression
- 10.1:1
- Displacement
- 1566.00 ccm (95.56 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 285.3 kg (629.0 pounds)
- Seat Height
- 533 mm (21.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.30 litres (0.22 quarts)
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Overall Length
- 2,743 mm (108.0 inches)
- Rake
- 45.0°
- Seat
- Various options.
- Wheels
- 80 Spoke Wheels. Customizable.
- Rear Tyre
- 260/60-18
- Frame Type
- Stretch
- : 6 inch
- Downtube
- , 2 inch
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc. Bremo, 2-piston caliper
- Front Brakes
- Single disc. Bremo, 4-piston caliper
- Rear Suspension
- Hidden shocks
- Front Suspension
- 41mm Telescopic 11 inch Over
