Back to Bike FinderYears: 2012 · 2011 · 2010
2012Cruiser

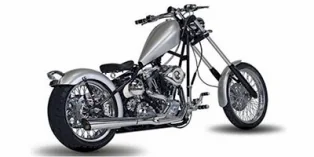

Saxon Whip
Key specifications
Engine
1573 cc
Weight
195 kg
Fuel type
petrol
Fuel capacity
3.5 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc. Bremo 4-piston calipers
Rear brakes
Single disc. Bremo 2- piston calipers
Technical details
Source specification data
- Make
- Saxon
- Model
- Whip
- Category
- Custom-cruiser
- Starter
- Electric
- Electrical
- 32 Amps Charging Output
- Instruments
- Digital with integrated tach
- Factory Warranty
- 24 months factory warranty
- Gearbox
- 6-speed
- Driveline
- 6-speed right side drive. Primary drive is chain.
- Engine Type
- OHV 45 degree V-twin
- Fuel System
- Carburettor. S and S Super E Carburetor
- Bore X Stroke
- 94.0 x 116.8 mm (3.7 x 4.6 inches)
- Compression
- 10.1:1
- Displacement
- 1573.00 ccm (95.98 cubic inches)
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 195.0 kg (430.0 pounds)
- Seat Height
- 660 mm (26.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 2.80 litres (0.18 quarts)
- Fuel Capacity
- 13.24 litres (3.50 gallons)
- Overall Length
- 2,692 mm (106.0 inches)
- Rake
- 45.0°
- Wheels
- 80 Spoke Wheels
- Rear Tyre
- 200-18
- Frame Type
- Stretch
- 6 inch
- Downtube
- , 2 inch
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc. Bremo 2- piston calipers
- Front Brakes
- Single disc. Bremo 4-piston calipers
- Front Suspension
- 41 mm Telescopic 11 inch Over
