2017Scooter

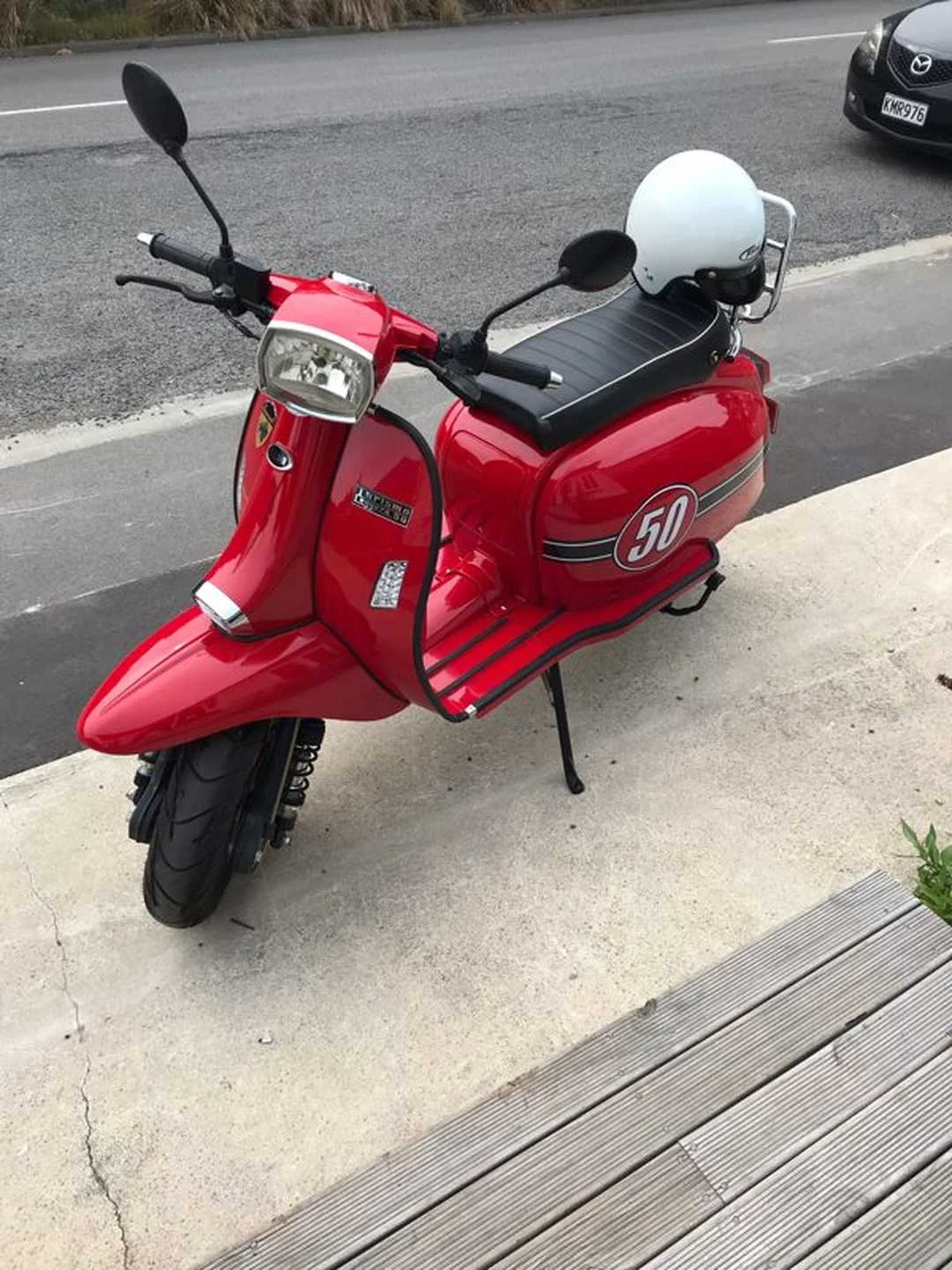

Scomadi TL50
Key specifications
Engine
50 cc
Power
3 HP
Torque
3 Nm
Weight
89 kg
Fuel type
petrol
Fuel capacity
2.9 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Sealed multidisc
Technical details
Source specification data
- Make
- Scomadi
- Model
- TL50
- Category
- Scooter
- Starter
- Electric
- Comments
- UK brand
- Electrical
- 12 volts battery.
- Color Options
- Black, orange, red, blue, mint, grey, carbon, silver, blue/red
- Power
- 3.22 HP (2.4 kW)) @ 7500 RPM
- Torque
- 3.20 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 7000 RPM
- Ignition
- Electronic CDI ignition
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.5 mm (1.5 x 1.6 inches)
- Compression
- 10.0:1
- Displacement
- 49.60 ccm (3.03 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 3
- Valves Per Cylinder
- 2
- Dry Weight
- 89.0 kg (196.2 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 11.00 litres (2.91 gallons)
- Overall Width
- 620 mm (24.4 inches)
- Overall Height
- 1,115 mm (43.9 inches)
- Overall Length
- 1,870 mm (73.6 inches)
- Power Weight Ratio
- 0.0362 HP/kg
- Rear Tyre
- 110/70-12
- Frame Type
- Space
- frame tubular chassis with
- S
- cladded bodywork.
- Front Tyre
- 110/70-12
- Rear Brakes
- Sealed multidisc
- Front Brakes
- Single disc
- Rear Suspension
- Coil spring with adjustable preload (4 positions) hydraulic shock absorber
- Front Suspension
- Double hydraulic pre load adjustable shock absorber with coil spring with anti dive linkage system.
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
Blackorangeredbluemintgreycarbonsilverblue/red
