Back to Bike FinderYears: 2017 · 2015
2017Other

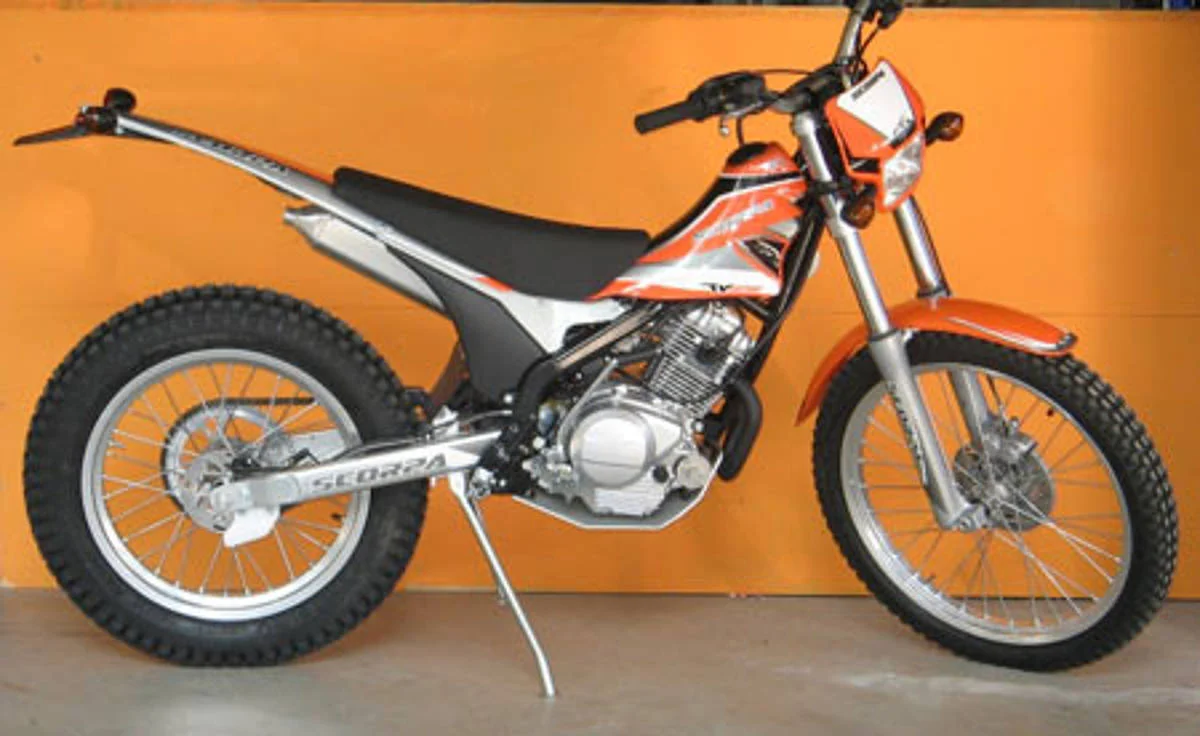

Scorpa 125 TY
Key specifications
Engine
124 cc
Weight
84 kg
Fuel type
petrol
Fuel capacity
0.9 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. Wave disks. AJP 4-piston caliper
Rear brakes
Single disc. Wave disks
Technical details
Source specification data
- Make
- Scorpa
- Model
- 125 TY
- Category
- Trial
- Starter
- Electric & kick
- Comments
- French bike.
- Color Options
- Orange/gray/white
- Clutch
- Multidisc In Oil Bath
- Gearbox
- 5-speed
- Ignition
- CDI
- Engine Type
- Nikasil coated cylinder
- Fuel System
- Carburettor. Dell´Orto PHBL 26BL
- Bore X Stroke
- 54.0 x 54.0 mm (2.1 x 2.1 inches)
- Displacement
- 123.70 ccm (7.55 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Steel and Aluminium
- Transmission Type Final Drive
- Chain
- Dry Weight
- 83.5 kg (184.1 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 1.00 litres (0.07 quarts)
- Fuel Capacity
- 3.50 litres (0.92 gallons)
- Overall Length
- 2,050 mm (80.7 inches)
- Ground Clearance
- 275 mm (10.8 inches)
- Wheels
- Morad anodized light alloy rims.
- Rear Tyre
- 2.15-18
- Frame Type
- Single tube Cr-Mo
- Front Tyre
- 1.60-21
- Rear Brakes
- Single disc. Wave disks
- Front Brakes
- Single
- disc.
- Wave
- disks.
- P
- 4-piston caliper
- Rear Suspension
- Adjustable hydraulic single damper, 165 mm wheel travel
- Front Suspension
- Aluminium 40 mm hydraulic fork, adjustable compression and
- Rear Wheel Travel
- 165 mm (6.5 inches)
- Front Wheel Travel
- 177 mm (7.0 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 182 mm (7.2 inches)
Available colors
Orange/gray/white
