Back to Bike FinderYears: 2012
2012Other

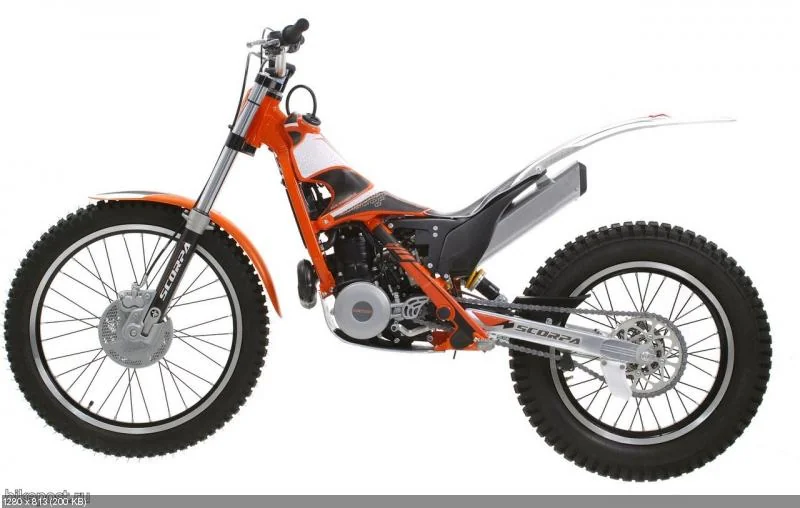

Scorpa SR 280
Key specifications
Engine
272 cc
Weight
70 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
5-speed
Seat height
28 mm
Front brakes
Single disc. Floating Wave disk with AJP 4-piston calipers
Rear brakes
Single disc. Floating Wave disk with AJP 2-piston calipers
Technical details
Source specification data
- Make
- Scorpa
- Model
- SR 280
- Category
- Trial
- Starter
- Kick
- Comments
- French made bike.
- Color Options
- Orange/grey/white
- Clutch
- Wet multidisk
- Gearbox
- 5-speed
- Ignition
- C.D.I.
- Fuel System
- Carburettor. Dell´Orto PHBL 26BL
- Bore X Stroke
- 76.0 x 60.0 mm (3.0 x 2.4 inches)
- Displacement
- 272.00 ccm (16.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- 2% mixture
- Transmission Type Final Drive
- Chain
- Dry Weight
- 70.0 kg (154.3 pounds)
- Seat Height
- 699 mm (27.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 1.00 litres (0.07 quarts)
- Fuel Capacity
- 2.60 litres (0.69 gallons)
- Overall Length
- 2,050 mm (80.7 inches)
- Ground Clearance
- 295 mm (11.6 inches)
- Weight Incl Oil Gas Etc
- 73.0 kg (160.9 pounds)
- Rear Tyre
- 2.15-18
- Frame Type
- Steel tube
- Front Tyre
- 1.60-21
- Rear Brakes
- Single
- disc.
- Floating Wave
- disk with
- P
- 2-piston calipers
- Front Brakes
- Single
- disc.
- Floating Wave
- disk with
- P
- 4-piston calipers
- Rear Suspension
- SACHS adjustable hydraulic monoshock
- Front Suspension
- Marzocchi 40 mm hydraulic fork, adjustable compression and rebond damping
- Rear Wheel Travel
- 165 mm (6.5 inches)
- Front Wheel Travel
- 177 mm (7.0 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 182 mm (7.2 inches)
Available colors
Orange/grey/white
