Back to Bike FinderYears: 2023
2023Sportbike

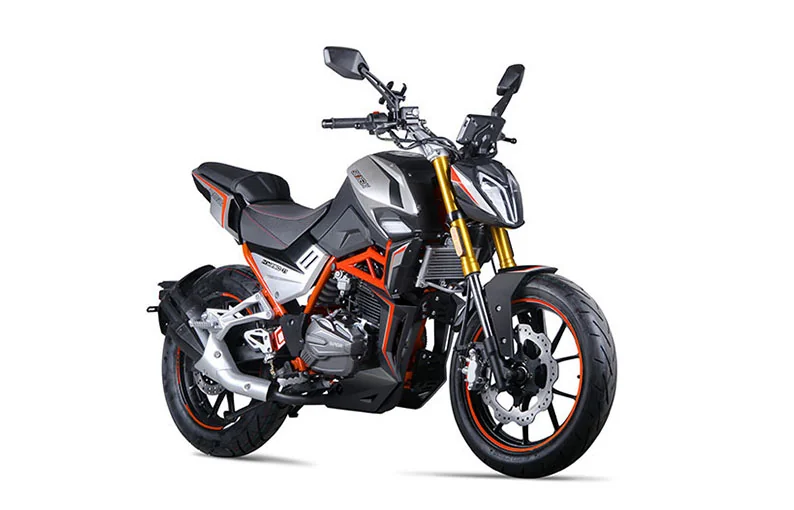

Shineray XY250-11
Key specifications
Engine
249 cc
Power
15 HP
Torque
18 Nm
Weight
150 kg
Fuel type
petrol
Fuel capacity
3.5 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Shineray
- Model
- XY250-11
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Made in China.
- Instruments
- LCD instruments
- Color Options
- Red/black
- Power
- 15.0 HP (11.0 kW)) @ 7500 RPM
- Clutch
- Manual multiplate wet clutch
- Torque
- 17.5 Nm (1.8 kgf-m or 12.9 ft.lbs) @ 5500 RPM
- Gearbox
- 5-speed
- Ignition
- C.D.I
- Top Speed
- 110.0 km/h (68.4 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Bore X Stroke
- 69.0 x 69.0 mm (2.7 x 2.7 inches)
- Compression
- 9.0:1
- Displacement
- 249.0 ccm (15.19 cubic inches)
- Cooling System
- Air
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 150.0 kg (330.7 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 1.10 litres (1.16 US quarts)
- Fuel Capacity
- 13.40 litres (3.54 US gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1200 mm (47.2 inches)
- Overall Length
- 2075 mm (81.7 inches)
- Ground Clearance
- 150 mm (5.9 inches)
- Power Weight Ratio
- 0.1001 HP/kg
- Seat
- 2-person seat
- Rear Tyre
- 130/70-17
- Front Tyre
- 110/80-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic pressure and spring type
- Front Suspension
- Hydraulic pressure and spring type
Available colors
Red/black
