Back to Bike FinderYears: 2016
2016Minibike

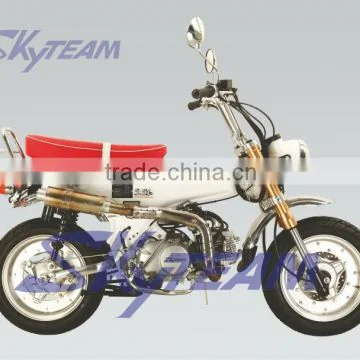

Skyteam Trail Road
Key specifications
Engine
49 cc
Weight
113 kg
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
4-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Skyteam
- Model
- Trail Road
- Category
- Minibike-cross
- Starter
- Electric & kick
- Comments
- Chinese
- brand.
- Model
- also called
- T50
- -3
- R
- .
- Color Options
- Red, Blue, Black, Orange
- Clutch
- Automatic Clutch
- Gearbox
- 4-speed
- Ignition
- CDI
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.4 mm (1.5 x 1.6 inches)
- Compression
- 8.8:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- 800ml
- Transmission Type Final Drive
- Chain
- Dry Weight
- 113.0 kg (249.1 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 10.00 litres (2.64 gallons)
- Overall Width
- 720 mm (28.3 inches)
- Overall Height
- 1,010 mm (39.8 inches)
- Overall Length
- 1,640 mm (64.6 inches)
- Ground Clearance
- 200 mm (7.9 inches)
- Rear Tyre
- 4.10-18
- Front Tyre
- 3.00-21
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Twin shocks
- Front Suspension
- Telescopic fork
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
RedBlueBlackOrange
