Back to Bike FinderYears: 2016
2016Minibike

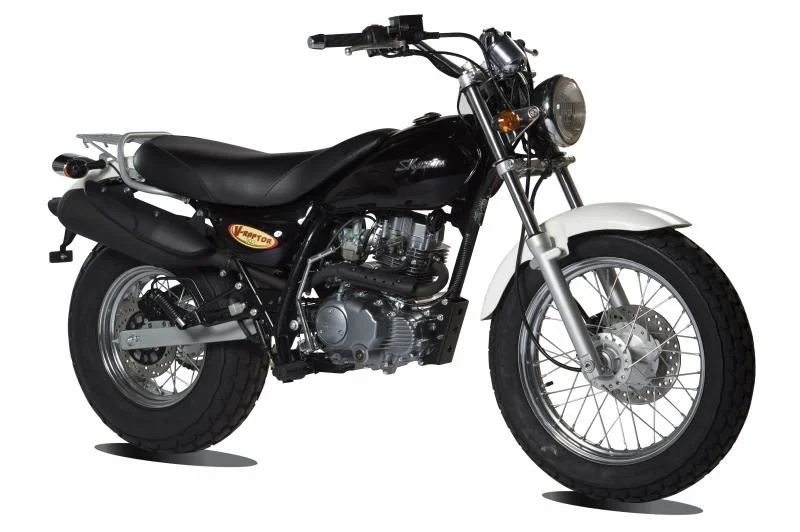

Skyteam V-Raptor
Key specifications
Engine
124 cc
Power
10 HP
Torque
9 Nm
Weight
123 kg
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Skyteam
- Model
- V-Raptor
- Category
- Minibike-sport
- Starter
- Electric & kick
- Comments
- Chinese
- brand.
- Model
- also called
- T125
- -2.
- Color Options
- Red, Blue, Black, Orange
- Power
- 10.06 HP (7.3 kW)) @ 8500 RPM
- Clutch
- Wet, Multiple Disc
- Torque
- 8.50 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 7500 RPM
- Gearbox
- 5-speed
- Ignition
- CDI
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.4 mm (1.5 x 1.6 inches)
- Compression
- 9.0:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Pressure and splash lubricarion
- Transmission Type Final Drive
- Chain
- Dry Weight
- 123.0 kg (271.2 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 10.00 litres (2.64 gallons)
- Overall Width
- 870 mm (34.3 inches)
- Overall Height
- 1,105 mm (43.5 inches)
- Overall Length
- 1,640 mm (64.6 inches)
- Ground Clearance
- 245 mm (9.6 inches)
- Power Weight Ratio
- 0.0818 HP/kg
- Rear Tyre
- 180/80-14
- Frame Type
- Steel, Double-tube
- Front Tyre
- 130/80-18
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- GAS/monoshock
- Front Suspension
- Spring and oil
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
RedBlueBlackOrange
