Back to Bike FinderYears: 2023 · 2022 · 2021 · 2019
2021Allround

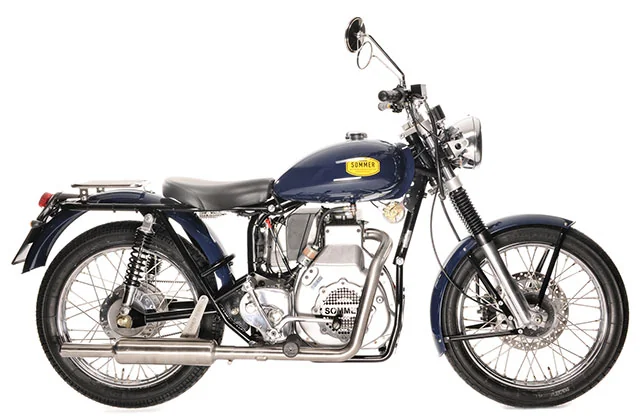

Sommer Diesel 516
Key specifications
Engine
516 cc
Power
12 HP
Torque
28 Nm
Weight
165 kg
Fuel type
diesel
Fuel capacity
3.6 L
Transmission
4-speed
Seat height
30 mm
Front brakes
Single disc. Optional drum brake
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Sommer
- Model
- Diesel 516
- Category
- Allround
- Starter
- Electric
- Comments
- Modified Royal Enfield
- bike without any
- Hand
- -made in
- Germany
- .
- Electrical
- Iskra 1 kW starter. Alternator 200W.
- Instruments
- Analogue instruments
- Color Options
- Black, red, light blue, blue
- Factory Warranty
- 2 Year Factory Warranty
- Power
- 12.0 HP (8.8 kW)) @ 3500 RPM
- Clutch
- 5-plate in oil bath
- Max Rpm
- 4000
- Torque
- 27.5 Nm (2.8 kgf-m or 20.3 ft.lbs) @ 2000 RPM
- Gearbox
- 4-speed
- Top Speed
- 99.0 km/h (61.5 mph)
- Engine Type
- Hatz 1B40 engine
- Fuel System
- Injection
- Bore X Stroke
- 93.0 x 76.0 mm (3.7 x 3.0 inches)
- Compression
- 20.5:1
- Displacement
- 516.0 ccm (31.49 cubic inches)
- Cooling System
- Air
- Engine Details
- Diesel
- Emission Details
- Euro 4
- Fuel Consumption
- 2.50 litres/100 km (40.0 km/l or 94.09 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 165.0 kg (363.8 pounds)
- Seat Height
- 760 mm (29.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.50 litres (3.57 gallons)
- Power Weight Ratio
- 0.0727 HP/kg
- Weight Incl Oil Gas Etc
- 180.0 kg (396.8 pounds)
- Rake
- 25.0°
- Seat
- Single seat
- Wheels
- Stainless steel rims, wire spoked
- Rear Tyre
- 3.50-19
- Frame Type
- Steel tube
- Front Tyre
- 3.25-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Optional drum brake
- Rear Suspension
- Swing Arm
- Front Suspension
- Telescopi fork
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 150 mm (5.9 inches)
Available colors
Blackredlight blueblue
