Back to Bike FinderYears: 2022
2022Allround

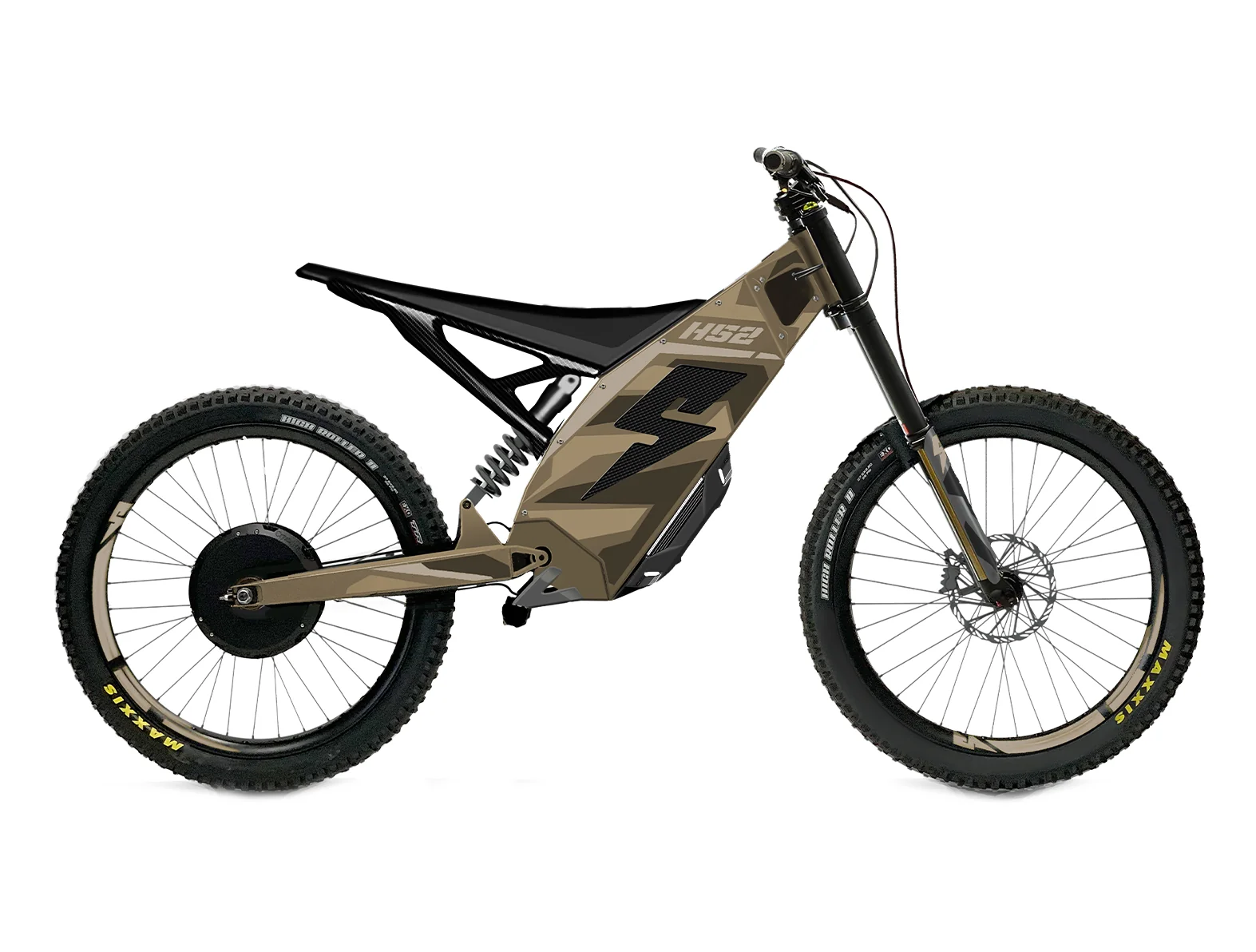

Stealth H-52
Key specifications
Power
3 HP
Torque
150 Nm
Weight
67 kg
Fuel type
electric
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Stealth
- Model
- H-52
- Category
- Allround
- Starter
- Electric
- Comments
- Range
- 70 km.
- Recharge
- 3 hours.
- Li
- -ion battery 2.5 k
- Wh
- .
- Regen
- braking.
- Color Options
- Green, white, grey
- Power
- 3.4 HP (2.4 kW))
- Torque
- 150.0 Nm (15.3 kgf-m or 110.6 ft.lbs)
- Top Speed
- 45.0 km/h (28.0 mph)
- Engine Type
- Electric
- Engine Details
- Hub motor, peak power 6.2 kW
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 67.0 kg (147.7 pounds)
- Overall Width
- 800 mm (31.5 inches)
- Overall Length
- 2105 mm (82.9 inches)
- Power Weight Ratio
- 0.0500 HP/kg
- Rear Tyre
- 2.8-27.5
- Frame Type
- Pressed sheet metal, 4130 CrMo
- Front Tyre
- 2.8-27.5
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- BF A02AR
- Front Suspension
- Inverted double crown
- Rear Wheel Travel
- 180 mm (7.1 inches)
- Front Wheel Travel
- 190 mm (7.5 inches)
- Rear Brakes Diameter
- 250 mm (9.8 inches)
- Front Brakes Diameter
- 250 mm (9.8 inches)
Available colors
Greenwhitegrey
