2014Off-road

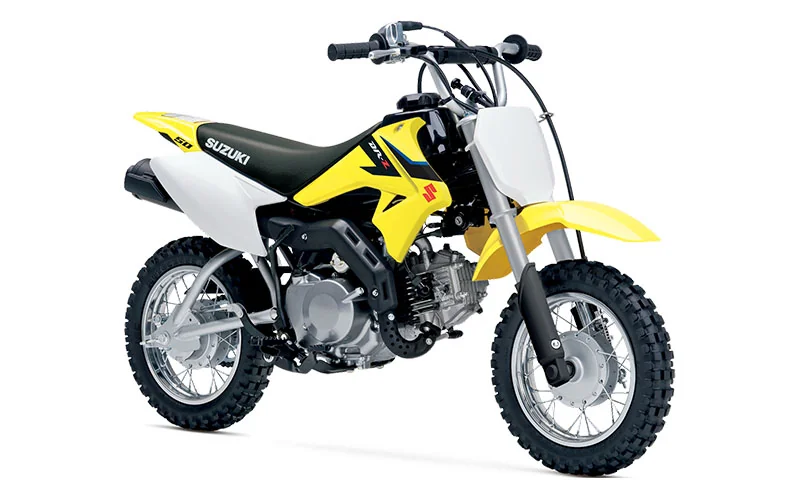

Suzuki DR-Z50
Key specifications
Engine
49 cc
Power
4 HP
Torque
3 Nm
Fuel type
petrol
Fuel capacity
0.8 L
Transmission
3-speed
Seat height
22 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Suzuki
- Model
- DR-Z50
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Intended
- for children under 40 kg.
- Sold
- in
- Asia
- .
- Color Options
- Yellow/black
- Power
- 3.89 HP (2.8 kW)) @ 9500 RPM
- Clutch
- Automatic centrifugal
- Torque
- 3.40 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 7000 RPM
- Gearbox
- 3-speed
- Ignition
- CDI
- Driveline
- Constant mesh bottom neutral three-stage return
- Fuel System
- Carburettor. Mikuni VM13
- Bore X Stroke
- 39.0 x 41.8 mm (1.5 x 1.6 inches)
- Compression
- 9.7:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain
- Seat Height
- 560 mm (22.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 0.60 litres (0.04 quarts)
- Fuel Capacity
- 3.00 litres (0.79 gallons)
- Overall Width
- 580 mm (22.8 inches)
- Overall Length
- 1,320 mm (52.0 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Weight Incl Oil Gas Etc
- 54.0 kg (119.0 pounds)
- Rake
- 25.5°
- Trail
- 36 mm (1.4 inches)
- Rear Tyre
- 2.50-10
- Frame Type
- Backbone
- Front Tyre
- 2.50-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Swingarm type, coil spring, oil damped
- Front Suspension
- Inverted telescopic, coil spring
Available colors
Yellow/black
