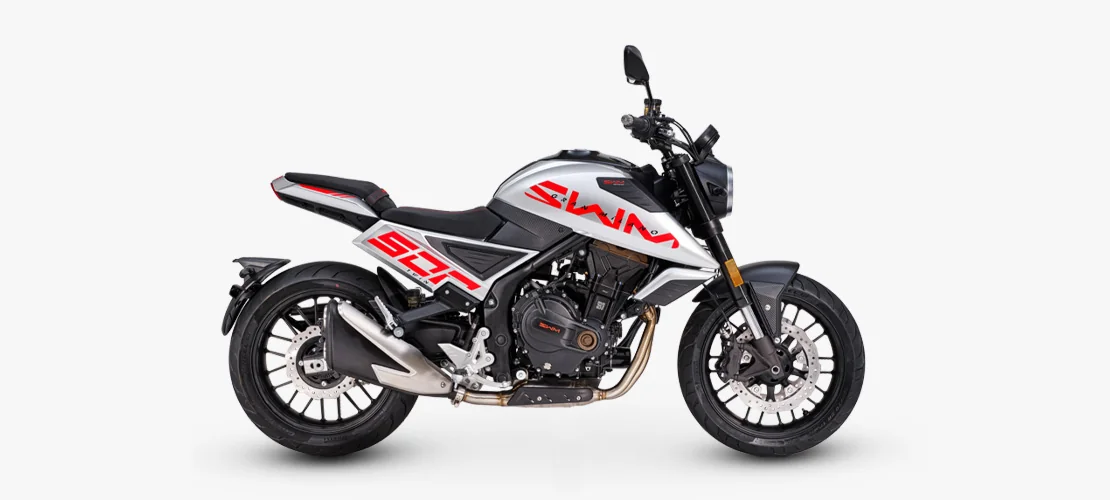

SWM Gran Milano Silver
Key specifications
Engine
494 cc
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
31 mm
Front brakes
Double disc. opposed radial caliper with 4 pistons -JJuan
Rear brakes
Single disc. Floating caliper – Juan
Technical details
Source specification data
- Make
- SWM
- Model
- Gran Milano Silver
- Category
- Allround
- Starter
- Electric
- Color Options
- Silver
- Clutch
- Wet, multiplate
- Gearbox
- 6-speed
- Ignition
- electronic
- Engine Type
- Single cylinder, four-stroke
- Bore X Stroke
- 90.0 x 70.0 mm (3.5 x 2.8 inches)
- Compression
- 10.0:1
- Displacement
- 494.0 ccm (30.14 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 5 pluss
- Lubrication System
- Dry sump
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 US gallons)
- Overall Width
- 724 mm (28.5 inches)
- Overall Height
- 1330 mm (52.4 inches)
- Overall Length
- 2040 mm (80.3 inches)
- Ground Clearance
- 177 mm (7.0 inches)
- Weight Incl Oil Gas Etc
- 188.0 kg (414.5 pounds)
- Wheels
- Pirelli Angel GT;
- Rear Tyre
- 160/60-17
- Frame Type
- Steel single tube beam with double cradle
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. Floating caliper – Juan
- Front Brakes
- Double disc. opposed radial caliper with 4 pistons -JJuan
- Rear Suspension
- Double hydraulic shock absorber; with spring preload and rebound adjustment
- Front Suspension
- Upside down hydraulic fork
- Rear Wheel Travel
- 106 mm (4.2 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 296 mm (11.7 inches)
Available colors
Silver
