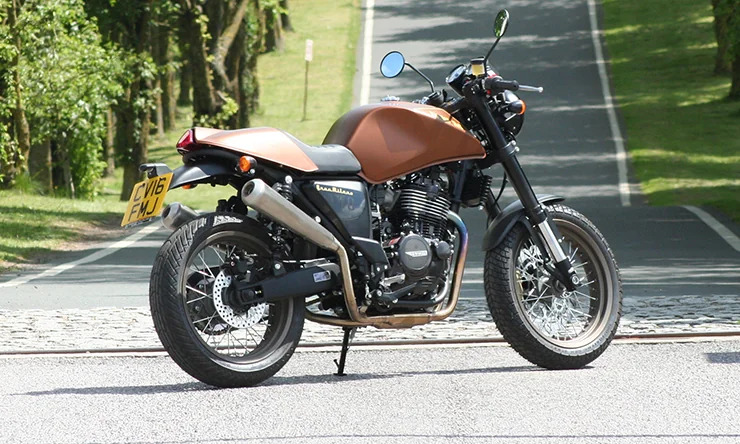

SWM Grand Milano 440
Key specifications
Engine
445 cc
Weight
145 kg
Fuel type
petrol
Fuel capacity
5.9 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- Grand Milano 440
- Category
- Classic
- Starter
- Electric
- Comments
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Cooperates
- with
- Chinese Shineray
- .
- Instruments
- Analogue
- Color Options
- Bronze
- Clutch
- Wet, multiplate type; cable control
- Gearbox
- 5-speed
- Ignition
- electronic
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 50.7 mm (3.1 x 2.0 inches)
- Displacement
- 445.26 ccm (27.17 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Dry sump with oil pump rotor and cartridge filter
- Transmission Type Final Drive
- Chain
- Dry Weight
- 144.7 kg (319.0 pounds)
- Seat Height
- 809 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 22.48 litres (5.94 gallons)
- Seat
- Single seat
- Wheels
- Wire spoked
- Rear Tyre
- 150/60-17
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double Hydraulic Shock absorber fully adjustable; spring preload adjustment
- Front Suspension
- Upside-down telescopic hydraulic fork fully adjustable
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Bronze
