Back to Bike FinderYears: 2020
2020Off-road

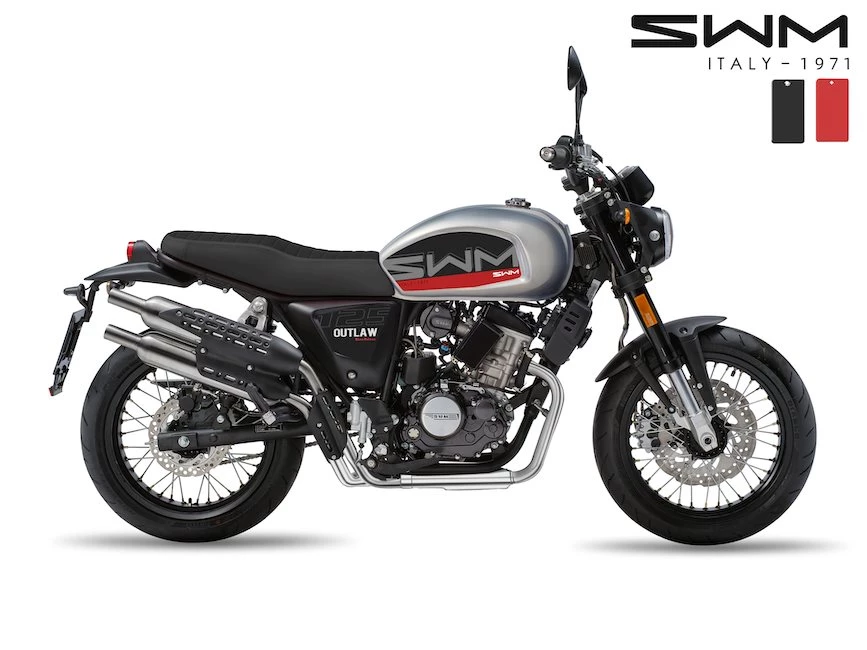

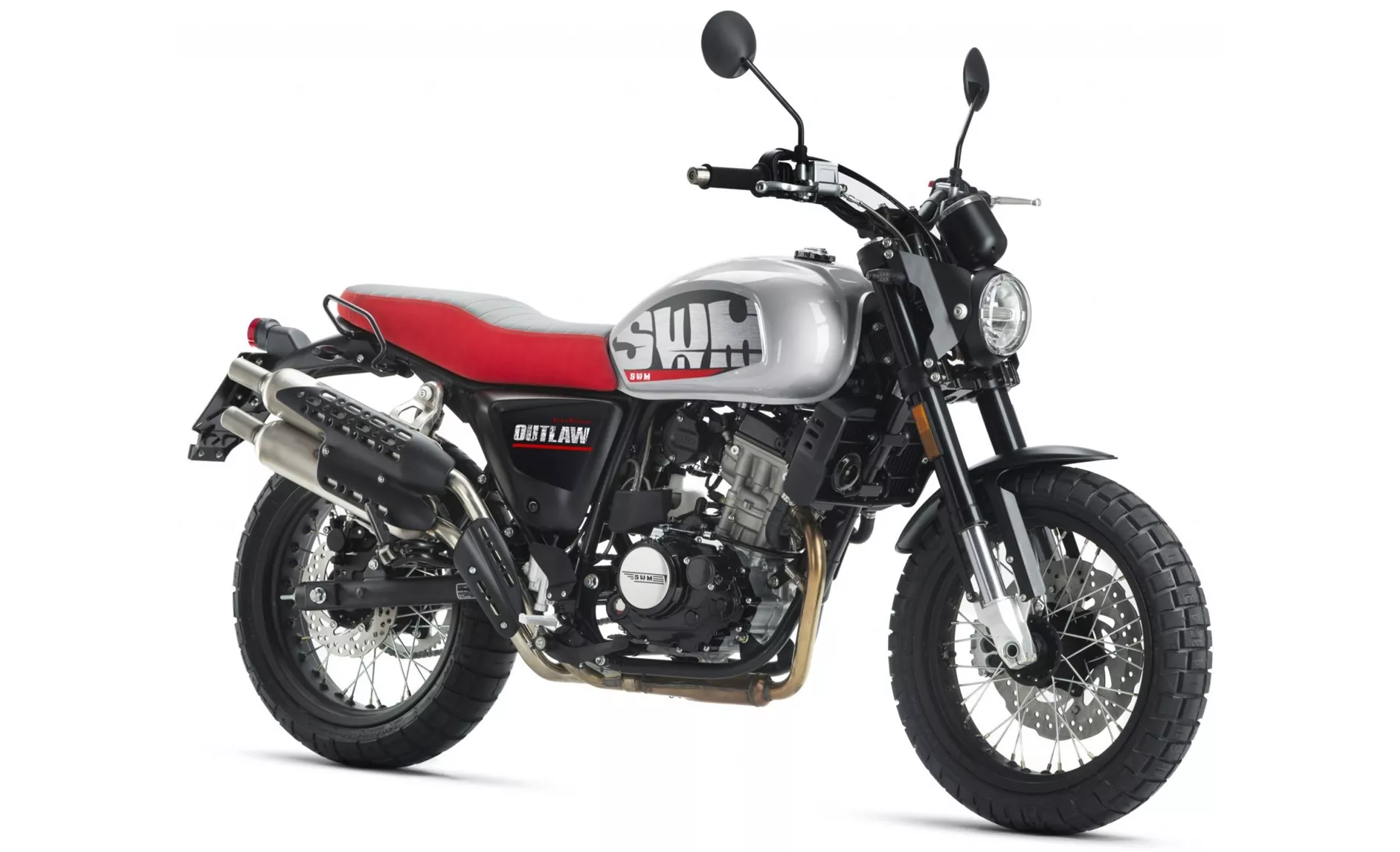

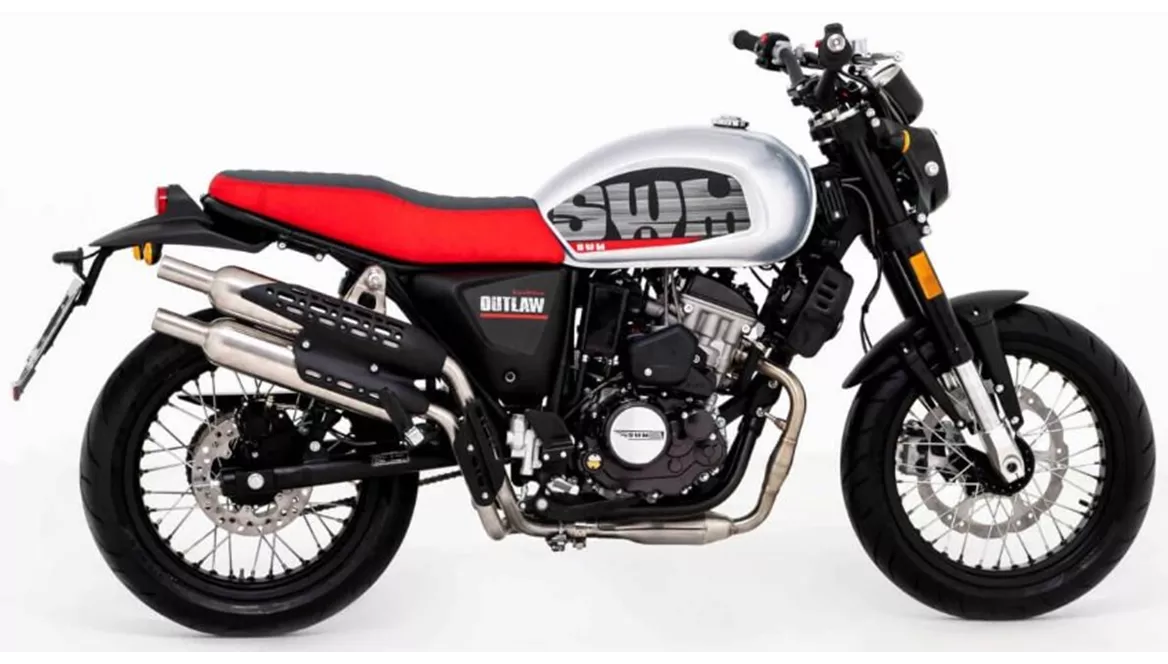

SWM Outlaw 125
Key specifications
Engine
125 cc
Weight
130 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
28 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- Outlaw 125
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Color Options
- Silver
- Clutch
- Wet, multiplate type; mecanical control
- Gearbox
- 6-speed
- Ignition
- electronic
- Fuel System
- Injection. Electronic injection
- Bore X Stroke
- 58.0 x 47.2 mm (2.3 x 1.9 inches)
- Displacement
- 124.55 ccm (7.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 130.0 kg (286.6 pounds)
- Seat Height
- 720 mm (28.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 gallons)
- Rear Tyre
- 150/60-17
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 129/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double hydraulic shock absorber with adjustable extension
- Front Suspension
- Upside down fork legs Ø41
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)

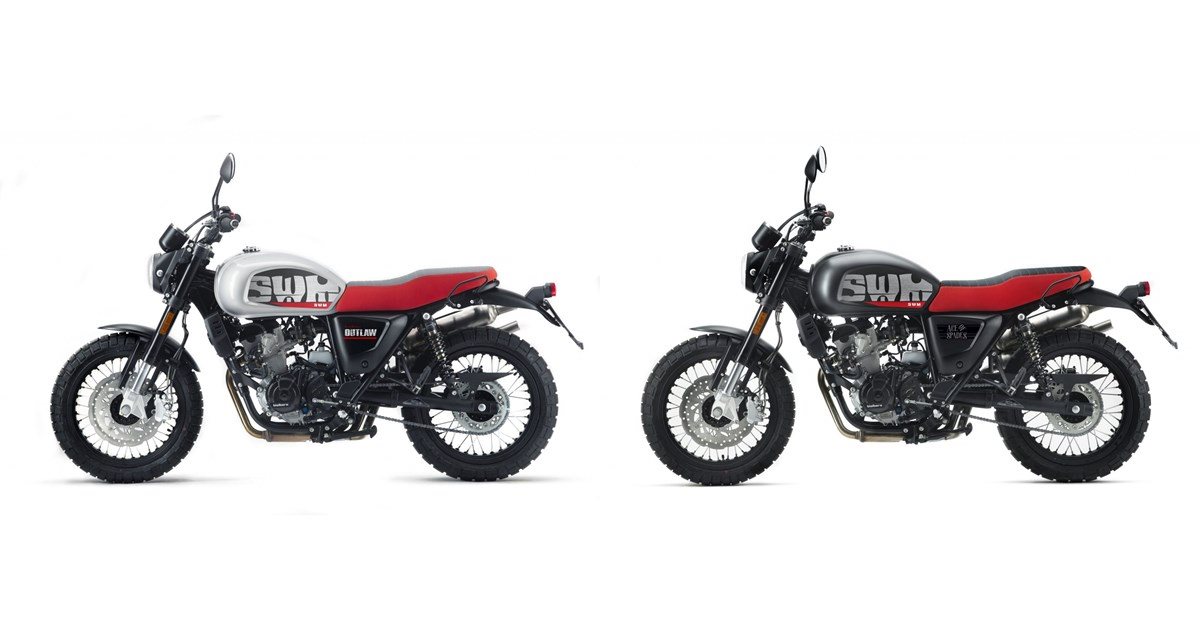

Available colors
Silver
