Back to Bike FinderYears: 2020 · 2016
2016Off-road

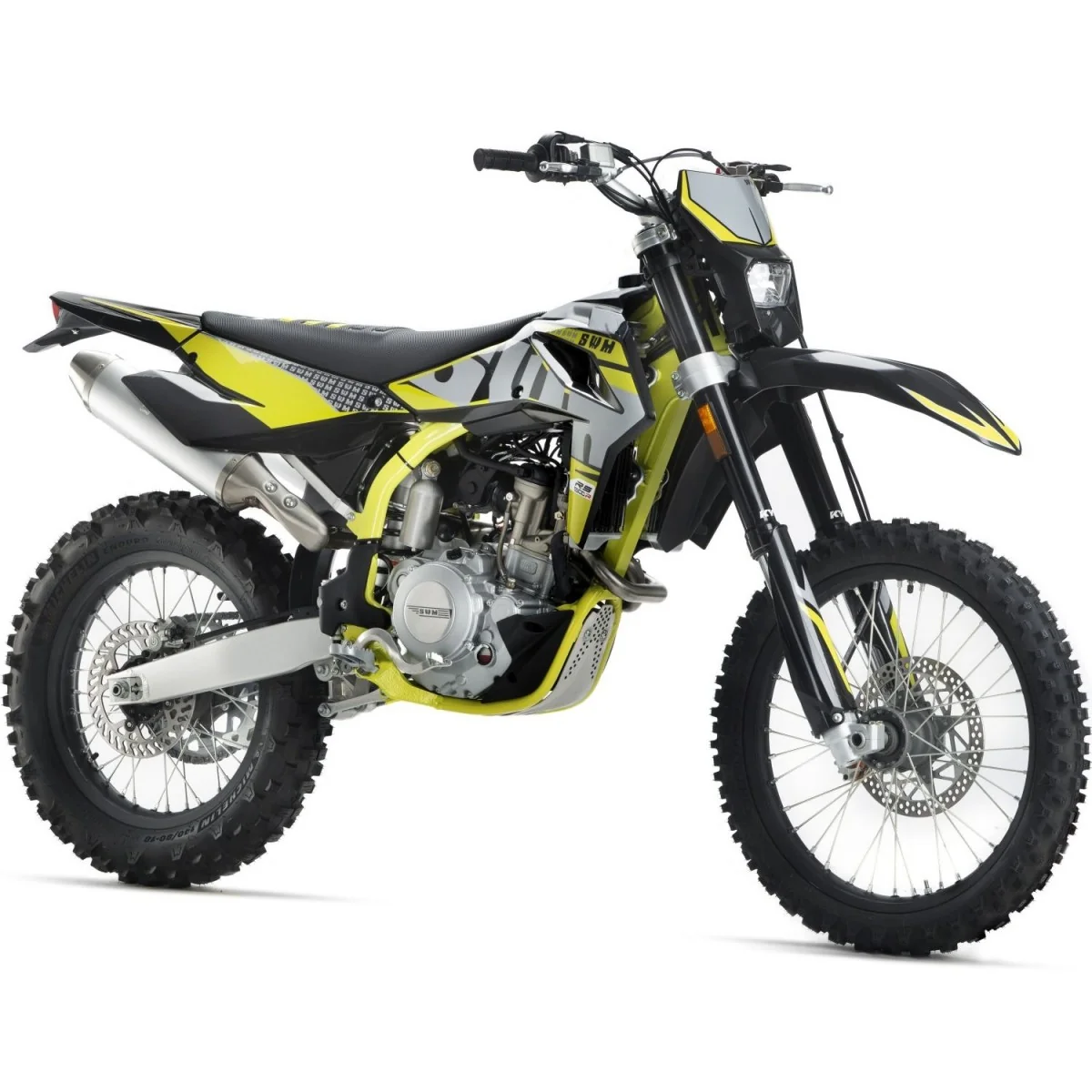

SWM RS 500 R
Key specifications
Engine
501 cc
Weight
112 kg
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
6-speed
Seat height
38 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- RS 500 R
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Cooperated
- with
- Chinese Shineray
- .
- Color Options
- Red/white/yellow/black
- Clutch
- Wet, multiplate type; mecanical control
- Gearbox
- 6-speed
- Ignition
- electronic
- Fuel System
- Injection. MIKUNI D42
- Bore X Stroke
- 9,677.4 x 67.8 mm (381.0 x 2.7 inches)
- Displacement
- 500.82 ccm (30.56 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Dry sump with two oil pump rotor and cartridge filter
- Transmission Type Final Drive
- Chain
- Dry Weight
- 112.0 kg (246.9 pounds)
- Seat Height
- 963 mm (37.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.19 litres (1.90 gallons)
- Rear Tyre
- 140/80-18
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Kayba
- ´
- Soft Damp
- ´ monoshock absorber with adjustment
- Front Suspension
- Kayba Upside-Down fork
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Red/white/yellow/black
