Back to Bike FinderYears: 2016
2016Off-road

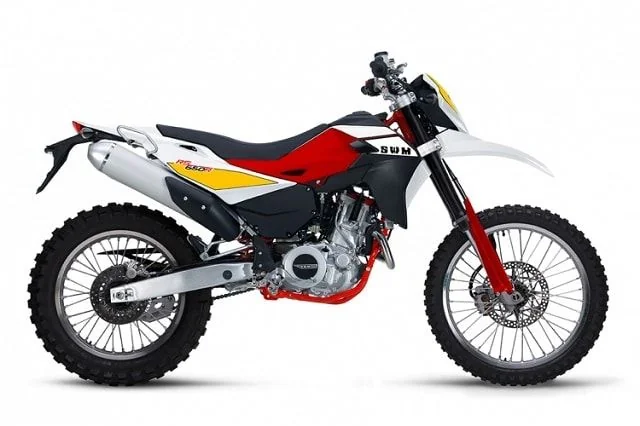

SWM RS 650 R
Key specifications
Engine
600 cc
Weight
144 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
6-speed
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- RS 650 R
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Cooperated
- with
- Chinese Shineray
- .
- Color Options
- Red/white/yellow/black
- Clutch
- Wet, multiplate type; mecanical control
- Gearbox
- 6-speed
- Ignition
- electronic
- Fuel System
- Injection. MIKUNI D42
- Bore X Stroke
- 100.1 x 76.5 mm (3.9 x 3.0 inches)
- Displacement
- 599.80 ccm (36.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump with lobe oil pump and cartridge filter
- Transmission Type Final Drive
- Chain
- Dry Weight
- 144.0 kg (317.5 pounds)
- Seat Height
- 900 mm (35.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Wheels
- Wire spoked
- Rear Tyre
- 140/80-18
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Sachs
- ´
- Soft Damp
- ´ monoshock absorber with adjustment
- Front Suspension
- I Upside
- -
- Down
- fork with damping adjustment
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Red/white/yellow/black
