2019Super Moto

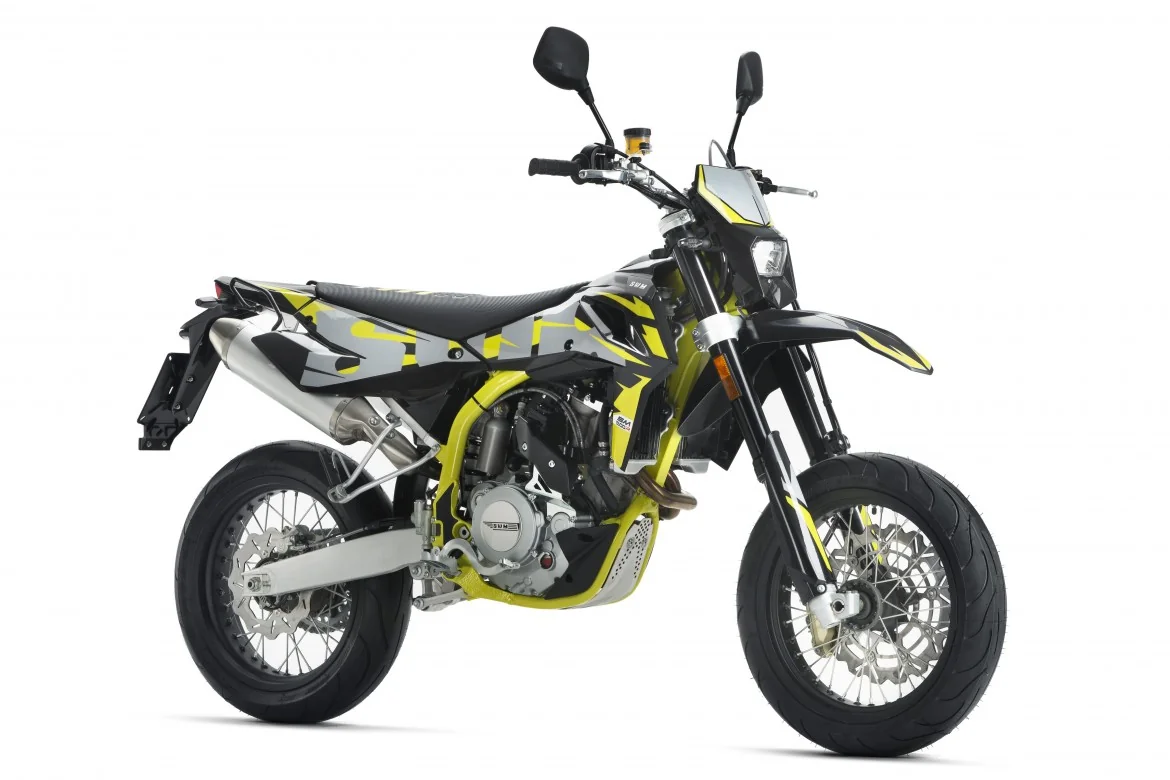

SWM SM 500 R
Key specifications
Engine
501 cc
Weight
133 kg
Fuel type
petrol
Seat height
36 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- SM 500 R
- Category
- Super motard
- Starter
- Electric
- Color Options
- Black/grey/red
- Clutch
- Wet multiplate
- Ignition
- Digital
- Fuel System
- Injection
- Bore X Stroke
- 97.0 x 67.8 mm (3.8 x 2.7 inches)
- Compression
- 12.9:1
- Displacement
- 501.00 ccm (30.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 4
- Lubrication System
- Dry sump
- Transmission Type Final Drive
- Chain
- Dry Weight
- 133.0 kg (293.2 pounds)
- Seat Height
- 920 mm (36.2 inches) If adjustable, lowest setting.
- Overall Width
- 820 mm (32.3 inches)
- Overall Height
- 1,250 mm (49.2 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Ground Clearance
- 295 mm (11.6 inches)
- Wheels
- Michelin Pilot Power
- Rear Tyre
- 150/60-17
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Black/grey/red
