Back to Bike FinderYears: 2016
2016Off-road

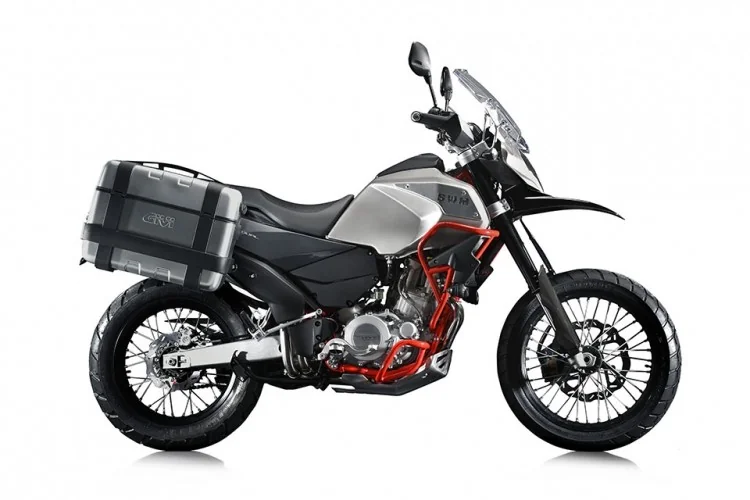

SWM SuperDual
Key specifications
Engine
600 cc
Weight
145 kg
Fuel type
petrol
Fuel capacity
5.9 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- SWM
- Model
- SuperDual
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Windscreen
- .
- M
- is short for
- Speedy Working Motors
- in
- Italy
- .
- Cooperates
- with
- Chinese Shineray
- .
- Color Options
- Silver/red/black
- Carrying Capacity
- Saddle bags
- Clutch
- Wet, multiplate type; hydraulic control
- Gearbox
- 6-speed
- Ignition
- electronic
- Fuel System
- Injection. Mikuni D45
- Bore X Stroke
- 100.1 x 76.5 mm (3.9 x 3.0 inches)
- Displacement
- 599.80 ccm (36.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump with oil pump rotor and cartridge filter
- Transmission Type Final Drive
- Chain
- Dry Weight
- 144.7 kg (319.0 pounds)
- Seat Height
- 809 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 22.48 litres (5.94 gallons)
- Wheels
- Wire spoked
- Rear Tyre
- 140/80-17
- Frame Type
- Single beam double cradle main frame
- Front Tyre
- 110/80-10
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Sachs
- ´
- Soft Damp
- ´ monoshock absorber with adjustment
- Front Suspension
- I Upside
- -
- Down
- fork with damping adjustment
- Rear Brakes Diameter
- 281 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silver/red/black
