Back to Bike FinderYears: 2019
2019Scooter

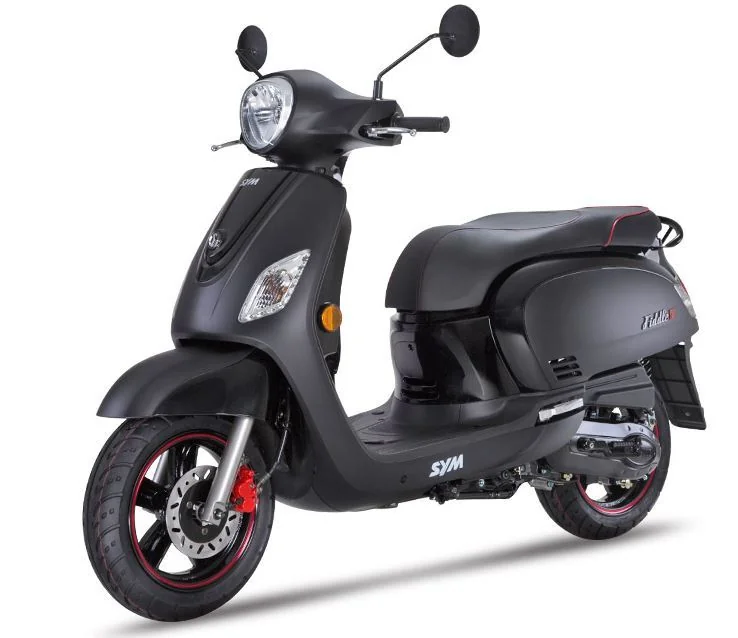

Sym Fiddle III 200
Key specifications
Engine
169 cc
Power
12 HP
Torque
13 Nm
Weight
116 kg
Fuel type
petrol
Fuel capacity
1.7 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Sym
- Model
- Fiddle III 200
- Category
- Scooter
- Starter
- Electric
- Color Options
- Black, blue
- Power
- 11.80 HP (8.6 kW)) @ 7500 RPM
- Torque
- 12.50 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Driveline
- CVT
- Fuel System
- Injection. Electronic fuel injection
- Displacement
- 169.00 ccm (10.31 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 4
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Belt
- Dry Weight
- 116.0 kg (255.7 pounds)
- Fuel Capacity
- 6.50 litres (1.72 gallons)
- Overall Width
- 690 mm (27.2 inches)
- Overall Height
- 1,130 mm (44.5 inches)
- Overall Length
- 1,900 mm (74.8 inches)
- Power Weight Ratio
- 0.1017 HP/kg
- Rear Tyre
- 120/70-12
- Frame Type
- Pipe under bone
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Unit swing arm
- Front Suspension
- Telescopic forks
Available colors
Blackblue
