Back to Bike FinderYears: 2014
2014Scooter

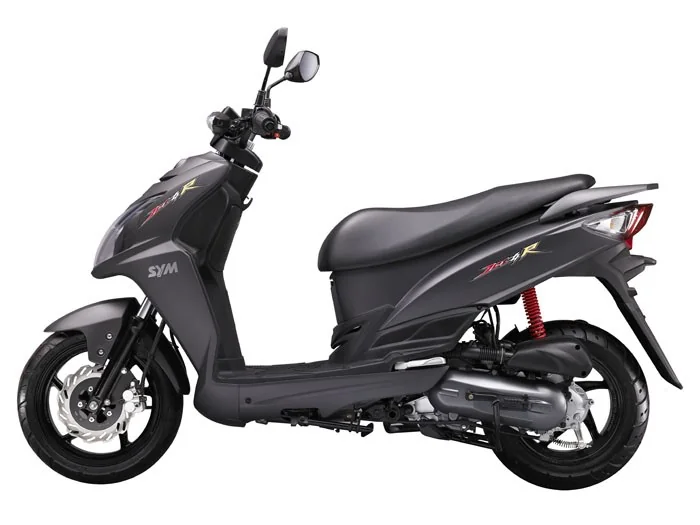

Sym Jet 4 50 R Naked
Key specifications
Engine
49 cc
Weight
109 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Sym
- Model
- Jet 4 50 R Naked
- Category
- Scooter
- Comments
- Made in Taiwan.
- Instruments
- Analogue
- Color Options
- Red, Blue, Mat grey
- Gearbox
- Automatic
- Driveline
- CVT
- Fuel System
- Carburettor
- Displacement
- 49.40 ccm (3.01 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 109.0 kg (240.3 pounds)
- Fuel Capacity
- 5.20 litres (1.37 gallons)
- Overall Width
- 655 mm (25.8 inches)
- Overall Height
- 1,140 mm (44.9 inches)
- Overall Length
- 1,900 mm (74.8 inches)
- Rear Tyre
- 130/70-12
- Frame Type
- Pipe under bone
- Front Tyre
- 120/60-13
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Front Brakes Diameter
- 226 mm (8.9 inches)
Available colors
RedBlueMat grey
