2020Scooter

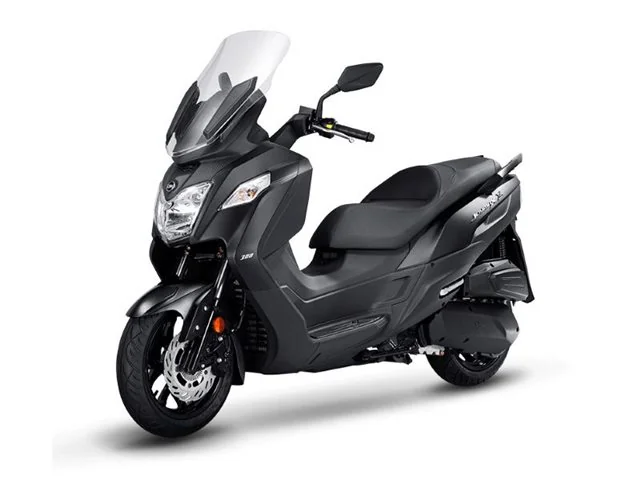

Sym JoyMax Z 300
Key specifications
Engine
278 cc
Power
27 HP
Torque
27 Nm
Weight
184 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
Automatic
Front brakes
Single disc. ABS
Rear brakes
Single disc. ABS
Technical details
Source specification data
- Make
- Sym
- Model
- JoyMax Z 300
- Category
- Scooter
- Light
- 12V 55W / 60W headlights
- Starter
- Electric
- Comments
- Made in Taiwan.
- Color Options
- Blue, Black, Gray, Red
- Power
- 27.0 HP (19.7 kW)) @ 8000 RPM
- Torque
- 27.3 Nm (2.8 kgf-m or 20.1 ft.lbs) @ 8000 RPM
- Gearbox
- Automatic
- Top Speed
- 128.0 km/h (79.5 mph)
- Driveline
- CVT
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection. EFI
- Displacement
- 278.0 ccm (16.96 cubic inches)
- Cooling System
- Liquid
- Fuel Consumption
- 2.50 litres/100 km (40.0 km/l or 94.09 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt (final drive)
- Dry Weight
- 184.0 kg (405.7 pounds)
- Fuel Capacity
- 12.00 litres (3.17 US gallons)
- Overall Width
- 760 mm (29.9 inches)
- Overall Height
- 1450 mm (57.1 inches)
- Overall Length
- 2190 mm (86.2 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Power Weight Ratio
- 0.1465 HP/kg
- Wheels
- Aluminium
- Rear Tyre
- 140/60-13
- Frame Type
- Steel, pipe underbone
- Front Tyre
- 120/70-14
- Rear Brakes
- Single disc. ABS
- Front Brakes
- Single disc. ABS
- Rear Suspension
- Unit swing arm
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
BlueBlackGrayRed
