2021Scooter

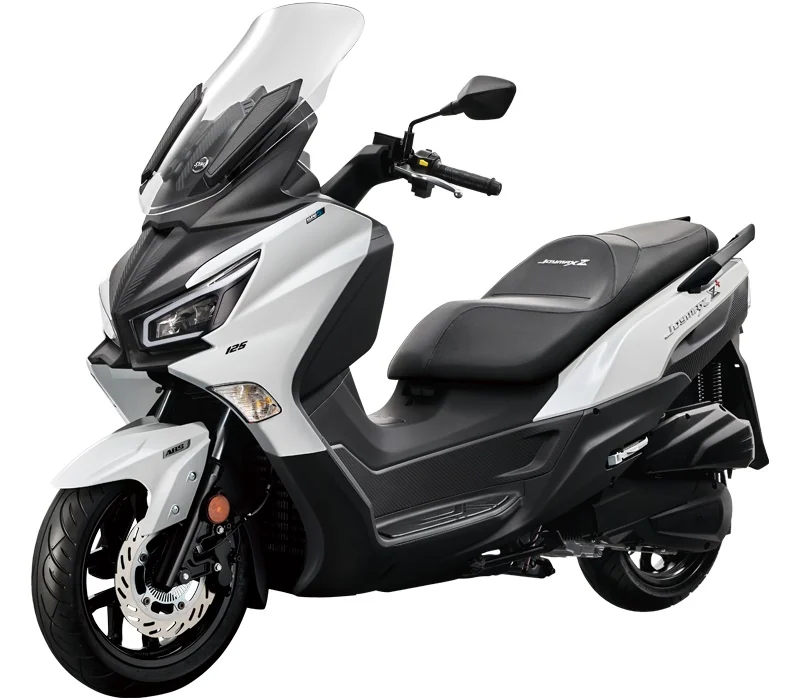

Sym Joymax Z Plus 125
Key specifications
Engine
125 cc
Power
14 HP
Torque
11 Nm
Weight
172 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. ABS.
Rear brakes
Single disc. ABS.
Technical details
Source specification data
- Make
- Sym
- Model
- Joymax Z Plus 125
- Category
- Scooter
- Light
- LED headlight
- Starter
- Electric
- Comments
- Windscreen. Made in Taiwan.
- Color Options
- Features
- Power
- 14.1 HP (10.3 kW)) @ 9000 RPM
- Torque
- 11.3 Nm (1.2 kgf-m or 8.3 ft.lbs) @ 7000 RPM
- Gearbox
- Automatic
- Top Speed
- 99.0 km/h (61.5 mph)
- Fuel System
- Injection
- Displacement
- 124.9 ccm (7.62 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 5
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Belt
- Dry Weight
- 172.0 kg (379.2 pounds)
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Overall Width
- 750 mm (29.5 inches)
- Overall Height
- 1440 mm (56.7 inches)
- Overall Length
- 2190 mm (86.2 inches)
- Power Weight Ratio
- 0.0819 HP/kg
- Rear Tyre
- 140/60-13
- Frame Type
- Underbone
- Front Tyre
- 120/70-14
- Rear Brakes
- Single disc. ABS.
- Front Brakes
- Single disc. ABS.
- Rear Suspension
- Dual shock
- Front Suspension
- Telescope fork
