2019Naked

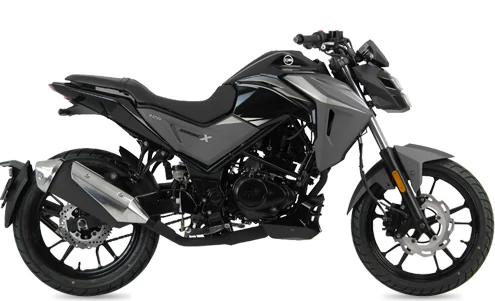

Sym NHX 125
Key specifications
Engine
124 cc
Power
10 HP
Torque
10 Nm
Weight
143 kg
Fuel type
petrol
Fuel capacity
2.9 L
Transmission
5-speed
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Sym
- Model
- NHX 125
- Category
- Naked bike
- Starter
- Electric
- Color Options
- Blue, Black
- Power
- 10.06 HP (7.3 kW)) @ 8500 RPM
- Torque
- 9.50 Nm (1.0 kgf-m or 7.0 ft.lbs) @ 6500 RPM
- Gearbox
- 5-speed
- Ignition
- TCI
- Fuel System
- Injection
- Bore X Stroke
- 56.5 x 49.5 mm (2.2 x 1.9 inches)
- Compression
- 10.0:1
- Displacement
- 124.10 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 4
- Lubrication System
- Forced circulation and splashing
- Transmission Type Final Drive
- Chain
- Dry Weight
- 143.0 kg (315.3 pounds)
- Fuel Capacity
- 11.00 litres (2.91 gallons)
- Overall Width
- 745 mm (29.3 inches)
- Overall Height
- 1,080 mm (42.5 inches)
- Overall Length
- 2,040 mm (80.3 inches)
- Power Weight Ratio
- 0.0703 HP/kg
- Rear Tyre
- 130/70-17
- Frame Type
- Diamind Steel
- Front Tyre
- 110/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic Centered Suspension
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 222 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
BlueBlack
