Back to Bike FinderYears: 2014
2014Scooter

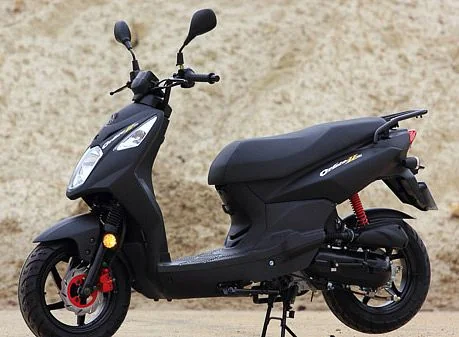

Sym Orbit II 50 Naked
Key specifications
Engine
50 cc
Weight
110 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Sym
- Model
- Orbit II 50 Naked
- Category
- Scooter
- Light
- 35/35W headlights
- Starter
- Electric & kick
- Comments
- Made in Taiwan.
- Color Options
- Black
- Gearbox
- Automatic
- Fuel System
- Carburettor. CV type, 18 mm
- Bore X Stroke
- 39.0 x 41.5 mm (1.5 x 1.6 inches)
- Compression
- 11.8:1
- Displacement
- 49.50 ccm (3.02 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 110.0 kg (242.5 pounds)
- Fuel Capacity
- 5.20 litres (1.37 gallons)
- Overall Width
- 690 mm (27.2 inches)
- Overall Height
- 1,125 mm (44.3 inches)
- Overall Length
- 1,905 mm (75.0 inches)
- Rear Tyre
- 130/70-12
- Frame Type
- Pipe under bone
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Unit swing arm
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
Available colors
Black
