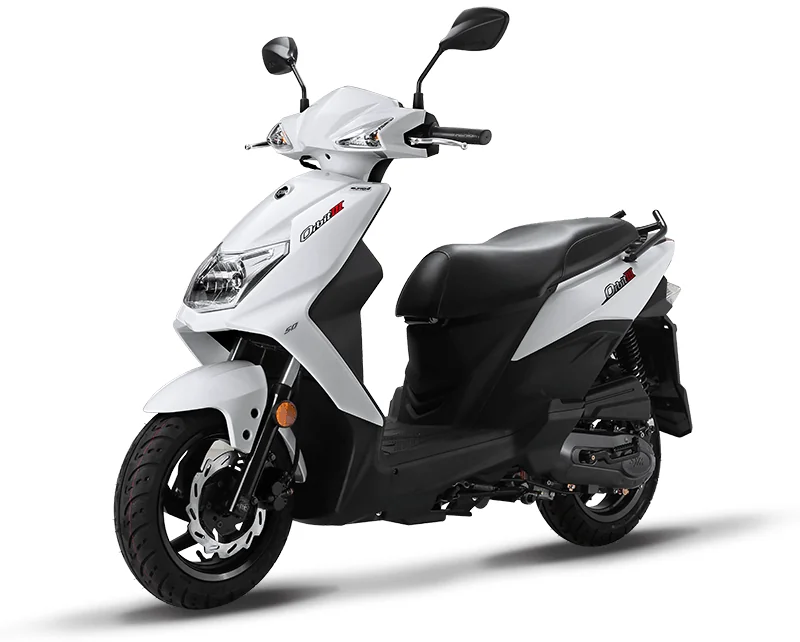

Sym Orbit III 125
2020Scooter

Sym Orbit III 125

Key specifications

Engine
125 cc
Power
10 HP
Torque
9 Nm
Weight
115 kg
Fuel type
petrol
Fuel capacity
1.5 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Technical details

Source specification data

Make
Sym
Model
Orbit III 125
Category
Scooter
Starter
Electric
Comments
Made in Taiwan.
Electrical
12 Volt
Color Options
Red, white, black, yellow
Carrying Capacity
Unser-seat carrying compartment
Power
10.06 HP (7.3 kW)) @ 8500 RPM
Torque
9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6500 RPM
Gearbox
Automatic
Top Speed
93.0 km/h (57.8 mph)
Driveline
Automatic CVT
Fuel System
Injection
Bore X Stroke
39.0 x 41.5 mm (1.5 x 1.6 inches)
Compression
11.8:1
Displacement
124.60 ccm (7.60 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, four-stroke
Emission Details
Euro 4
Transmission Type Final Drive
Belt
Dry Weight
115.0 kg (253.5 pounds)
Fuel Capacity
5.70 litres (1.51 gallons)
Overall Width
682 mm (26.9 inches)
Overall Height
1,120 mm (44.1 inches)
Overall Length
1,900 mm (74.8 inches)
Power Weight Ratio
0.0875 HP/kg
Rear Tyre
120/70-12
Front Tyre
110/70-12
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Single disc
Rear Suspension
Unit swing arm
Front Suspension
Telescopic fork
Rear Brakes Diameter
130 mm (5.1 inches)
Front Brakes Diameter
226 mm (8.9 inches)

Available colors

Redwhiteblackyellow
