Back to Bike FinderYears: 2014
2014ATV

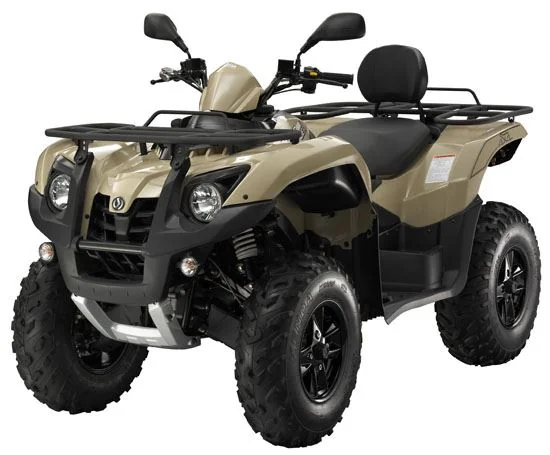

Sym QuadRaider 600LE
Key specifications
Engine
565 cc
Power
21 HP
Torque
35 Nm
Weight
348 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Sym
- Model
- QuadRaider 600LE
- Category
- ATV
- Starter
- Electric
- Comments
- Made in Taiwan.
- Electrical
- 12 V 12Ah battery.
- Color Options
- Sand yellow
- Power
- 21.46 HP (15.7 kW)) @ 6000 RPM
- Torque
- 35.30 Nm (3.6 kgf-m or 26.0 ft.lbs) @ 3000 RPM
- Gearbox
- Automatic
- Top Speed
- 80.0 km/h (49.7 mph)
- Fuel System
- Carburettor. C.V.K.
- Displacement
- 565.00 ccm (34.48 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 348.0 kg (767.2 pounds)
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 1,150 mm (45.3 inches)
- Overall Height
- 1,220 mm (48.0 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Power Weight Ratio
- 0.0617 HP/kg
- Rear Tyre
- 25/10-12
- Frame Type
- Pipe under bone
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Independent double arm
- Front Suspension
- Independent double arm
- Rear Brakes Diameter
- 180 mm (7.1 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
Sand yellow
