Back to Bike FinderYears: 2022
2022Off-road

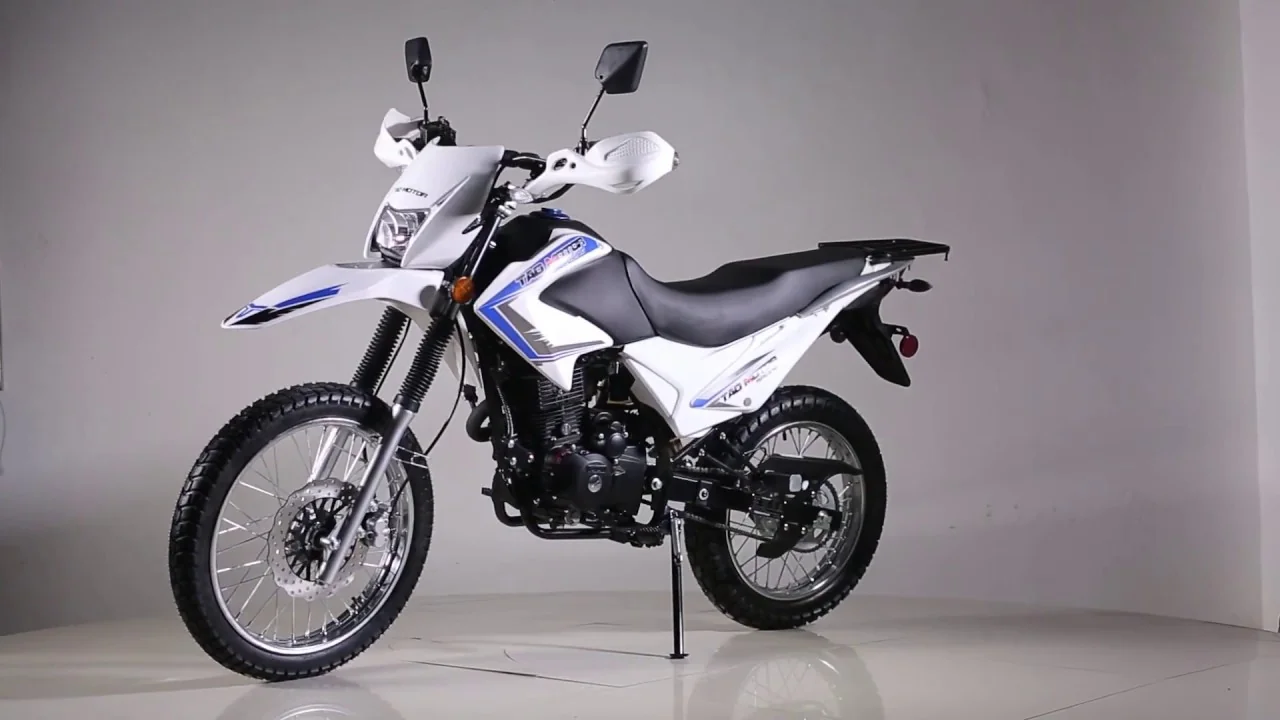

Tao Motor TBR7D
Key specifications
Engine
229 cc
Weight
130 kg
Fuel type
petrol
Seat height
34 mm
Front brakes
Single disc. Hydraulic.
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Tao Motor
- Model
- TBR7D
- Category
- Enduro-offroad
- Light
- LED lights
- Starter
- Electric & kick
- Comments
- Chinese
- brand.
- Sold
- in the
- S
- and
- Canada
- .
- B
- charging port.
- Color Options
- White, blue, green
- Ignition
- CDI
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Displacement
- 229.0 ccm (13.97 cubic inches)
- Cooling System
- Air
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 129.7 kg (286.0 pounds)
- Seat Height
- 864 mm (34.0 inches) If adjustable, lowest setting.
- Overall Width
- 838 mm (33.0 inches)
- Overall Height
- 1194 mm (47.0 inches)
- Overall Length
- 2032 mm (80.0 inches)
- Ground Clearance
- 284 mm (11.2 inches)
- Wheels
- Wire spoked
- Rear Tyre
- 130/90-17
- Front Tyre
- 90/90-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Hydraulic.
- Rear Suspension
- Monoshock
- Front Suspension
- Telescopic fork
Available colors
Whitebluegreen
