2013Sportbike

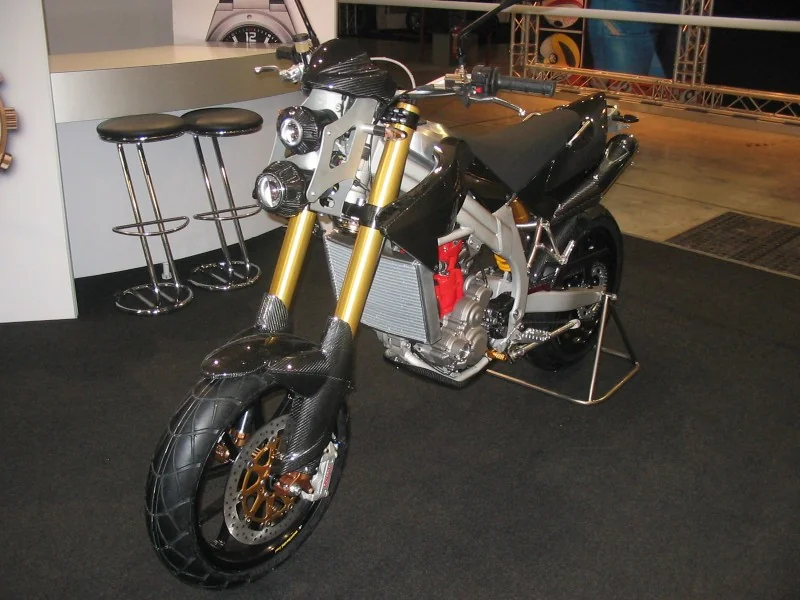

Terra Modena 198
Key specifications
Engine
450 cc
Weight
120 kg
Fuel type
petrol
Fuel capacity
2.3 L
Transmission
6-speed
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Terra Modena
- Model
- 198
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Italian made bike.
- Electrical
- 12 V - 9Ah battery
- Instruments
- Programmable digital display
- Color Options
- White
- Clutch
- Surflex anti-hop clutch, with ergal cover; wet, multiple hydraulically operated plates.
- Max Rpm
- 9000
- Gearbox
- 6-speed
- Ignition
- Magneti Marelli
- Driveline
- Primary distribution fitted with sprocket gears
- Engine Type
- Titanium
- valves.
- Sand
- casted aluminium engine block.
- Fuel System
- Injection
- .
- Indirect
- injection.
- Dell
- ’
- Orto
- Ø 50mm throttle body.
- Bore X Stroke
- 98.0 x 59.6 mm (3.9 x 2.3 inches)
- Displacement
- 449.60 ccm (27.43 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro III
- Lubrication System
- Separate lubrication system with one pressure pump and two scavenge pumps
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 120.0 kg (264.6 pounds)
- Seat Height
- 890 mm (35.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 8.50 litres (2.25 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,185 mm (46.7 inches)
- Overall Length
- 2,150 mm (84.6 inches)
- Reserve Fuel Capacity
- 1.00 litres (0.26 gallons)
- Rake
- 26.0°
- Wheels
- Marchesini
- , in cast aluminium.
- Dunlop Sportmax
- tyres.
- Rear Tyre
- 160/60-ZR17
- Frame Type
- Aluminium
- alloy
- Alsi
- 9 double bean main frame with a twin under mount.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Rear
- swinging fork and
- S
- 46 mm single shock absorber fitted with inert gas cartridge and separator piston.
- Front Suspension
- Ohlins upside-down front suspension fork with 46 mm diameter rods and adjustable compression, rebound and pre-stressing
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
White
