Back to Bike FinderYears: 2007
2007Scooter

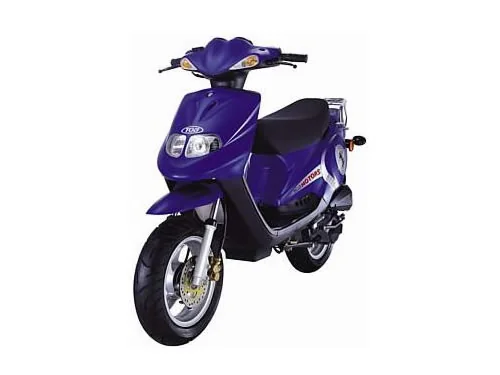

TGB 101R (150cc)
Key specifications
Engine
124 cc
Power
9 HP
Weight
84 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TGB
- Model
- 101R (150cc)
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Red, black, blue
- Power
- 8.60 HP (6.3 kW)) @ 7500 RPM
- Clutch
- C.V.T
- Gearbox
- Automatic
- Ignition
- C.D.I
- Bore X Stroke
- 52.4 x 57.8 mm (2.1 x 2.3 inches)
- Compression
- 9.2:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Oil Pump Separate
- Transmission Type Final Drive
- Belt
- Dry Weight
- 84.0 kg (185.2 pounds)
- Fuel Capacity
- 5.10 litres (1.35 gallons)
- Overall Width
- 680 mm (26.8 inches)
- Overall Height
- 1,140 mm (44.9 inches)
- Overall Length
- 1,770 mm (69.7 inches)
- Power Weight Ratio
- 0.1024 HP/kg
- Rear Tyre
- 120/70-12
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
Available colors
Redblackblue
