Back to Bike FinderYears: 2010
2010ATV

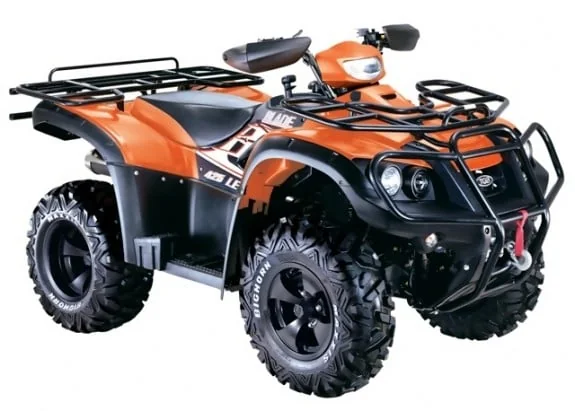

TGB Blade 425LE
Key specifications
Engine
403 cc
Power
30 HP
Weight
260 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TGB
- Model
- Blade 425LE
- Category
- ATV
- Starter
- Electric
- Comments
- Switchable
- 2 or 4
- D
- .
- Automatic Transmission
- with
- Hi
- /
- Lo Range
- and
- Reverse
- .
- Slip Limited Front Differential
- .
- Color Options
- Green
- Power
- 30.00 HP (21.9 kW)) @ 7000 RPM
- Gearbox
- Automatic
- Fuel System
- Carburettor
- Displacement
- 403.00 ccm (24.59 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 260.0 kg (573.2 pounds)
- Seat Height
- 880 mm (34.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1,170 mm (46.1 inches)
- Overall Height
- 1,185 mm (46.7 inches)
- Overall Length
- 2,155 mm (84.8 inches)
- Ground Clearance
- 267 mm (10.5 inches)
- Power Weight Ratio
- 0.1154 HP/kg
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double A-Arm
- Front Suspension
- Swing Arm
Available colors
Green
