Back to Bike FinderYears: 2010
2010ATV

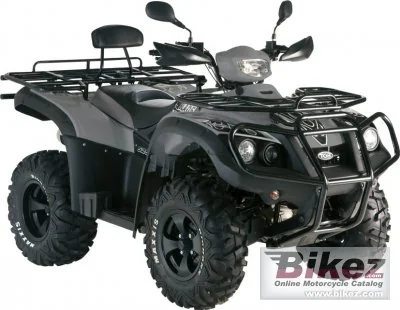

TGB Blade 525SE
Key specifications
Engine
503 cc
Power
42 HP
Weight
332 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TGB
- Model
- Blade 525SE
- Category
- ATV
- Comments
- Switchable
- 2 or 4
- D
- .
- Automatic Transmission
- with
- Hi
- /
- Lo Range
- and
- Reverse
- .
- Slip Limited Front Differential
- .
- Alloy Wheels
- .
- Winch
- .
- Color Options
- White/Carbon, Green/Carbon
- Power
- 41.50 HP (30.3 kW)) @ 6500 RPM
- Gearbox
- Automatic
- Displacement
- 503.00 ccm (30.69 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 332.0 kg (731.9 pounds)
- Seat Height
- 920 mm (36.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1,235 mm (48.6 inches)
- Overall Height
- 1,250 mm (49.2 inches)
- Overall Length
- 2,290 mm (90.2 inches)
- Power Weight Ratio
- 0.1250 HP/kg
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double A-Arm, IRS
- Front Suspension
- Double A-Arm
Available colors
White/CarbonGreen/Carbon
