Back to Bike FinderYears: 2021
2021ATV

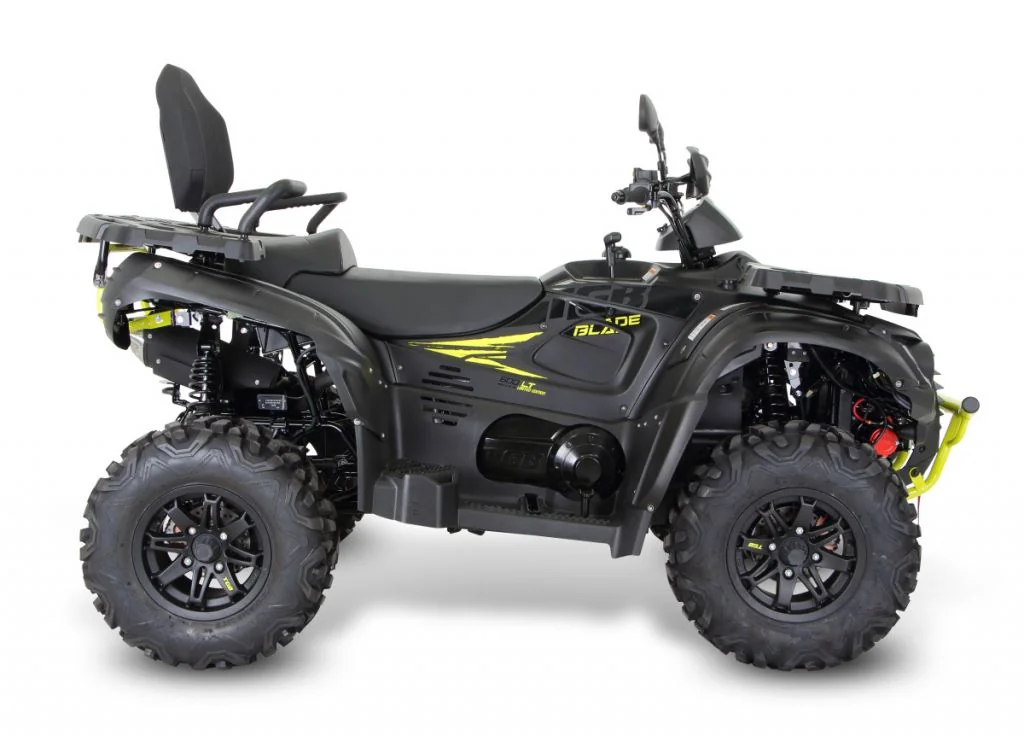

TGB Blade 600 SE
Key specifications
Engine
561 cc
Power
42 HP
Torque
57 Nm
Weight
387 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
Automatic
Seat height
36 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TGB
- Model
- Blade 600 SE
- Category
- ATV
- Light
- Full-LED lighting
- Starter
- Electric
- Comments
- Made
- in
- Taiwan
- .
- Sold
- in
- Australia
- .
- Switchable
- 2 or 4
- D
- .
- Automatic Transmission
- with
- Hi
- /
- Lo Range
- and
- Reverse
- .
- Instruments
- Digital
- display features odometer, speedometer, trip odometer,
- M
- ,
- S
- setting and fuel level.
- Color Options
- Grey, Orange
- Factory Warranty
- 2 years
- Carrying Capacity
- Front and rear racks
- Power
- 42.1 HP (30.7 kW)) @ 7000 RPM
- Torque
- 56.6 Nm (5.8 kgf-m or 41.7 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Fuel System
- Injection
- Displacement
- 561.0 ccm (34.23 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 387.0 kg (853.2 pounds)
- Seat Height
- 914 mm (36.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1240 mm (48.8 inches)
- Overall Height
- 1280 mm (50.4 inches)
- Overall Length
- 2120 mm (83.5 inches)
- Ground Clearance
- 320 mm (12.6 inches)
- Power Weight Ratio
- 0.1088 HP/kg
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double A-Arm
- Front Suspension
- Double A-Arm
- Rear Wheel Travel
- 240 mm (9.4 inches)
- Front Wheel Travel
- 220 mm (8.7 inches)
Available colors
GreyOrange
