2007Scooter

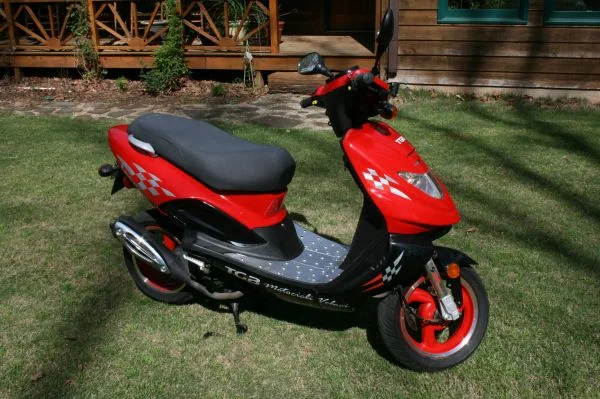

TGB Laser (150cc)
Key specifications
Engine
151 cc
Power
10 HP
Weight
107 kg
Fuel type
petrol
Fuel capacity
1.8 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TGB
- Model
- Laser (150cc)
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Red, black, blue
- Power
- 10.10 HP (7.4 kW)) @ 7500 RPM
- Clutch
- C.V.T
- Gearbox
- Automatic
- Ignition
- C.D.I
- Bore X Stroke
- 57.4 x 58.4 mm (2.3 x 2.3 inches)
- Compression
- 10.8:1
- Displacement
- 151.00 ccm (9.21 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Compress and Splash Combined Type
- Transmission Type Final Drive
- Belt
- Dry Weight
- 107.0 kg (235.9 pounds)
- Fuel Capacity
- 6.80 litres (1.80 gallons)
- Overall Width
- 715 mm (28.1 inches)
- Overall Height
- 1,160 mm (45.7 inches)
- Overall Length
- 1,880 mm (74.0 inches)
- Power Weight Ratio
- 0.0944 HP/kg
- Rear Tyre
- 110/80-14
- Front Tyre
- 80/80-14
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
Available colors
Redblackblue
