2007Scooter

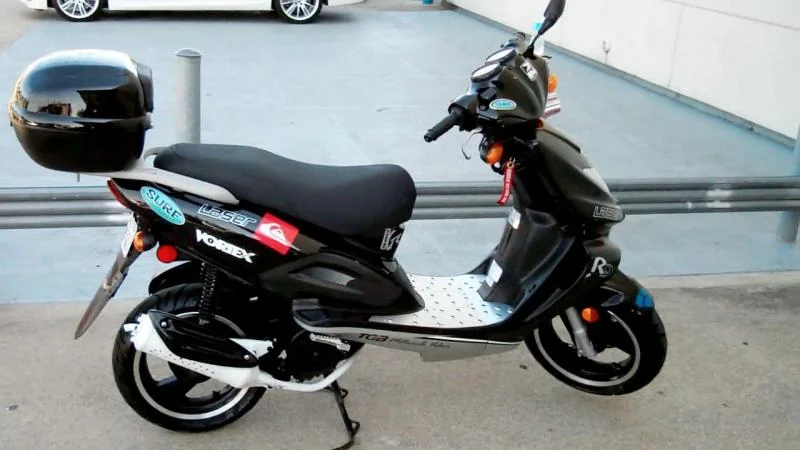

TGB Laser
Key specifications
Engine
49 cc
Power
5 HP
Weight
86 kg
Fuel type
petrol
Fuel capacity
1.8 L
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TGB
- Model
- Laser
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Red, black, blue
- Power
- 4.90 HP (3.6 kW)) @ 7500 RPM
- Clutch
- C.V.T
- Gearbox
- Automatic
- Ignition
- C.D.I
- Bore X Stroke
- 41.0 x 37.4 mm (1.6 x 1.5 inches)
- Compression
- 7.8:1
- Displacement
- 49.30 ccm (3.01 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Compress and Splash Combined Type
- Transmission Type Final Drive
- Belt
- Dry Weight
- 86.0 kg (189.6 pounds)
- Fuel Capacity
- 6.80 litres (1.80 gallons)
- Overall Width
- 660 mm (26.0 inches)
- Overall Height
- 1,170 mm (46.1 inches)
- Overall Length
- 1,875 mm (73.8 inches)
- Power Weight Ratio
- 0.0570 HP/kg
- Rear Tyre
- 110/80-14
- Front Tyre
- 80/80-14
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
Available colors
Redblackblue
