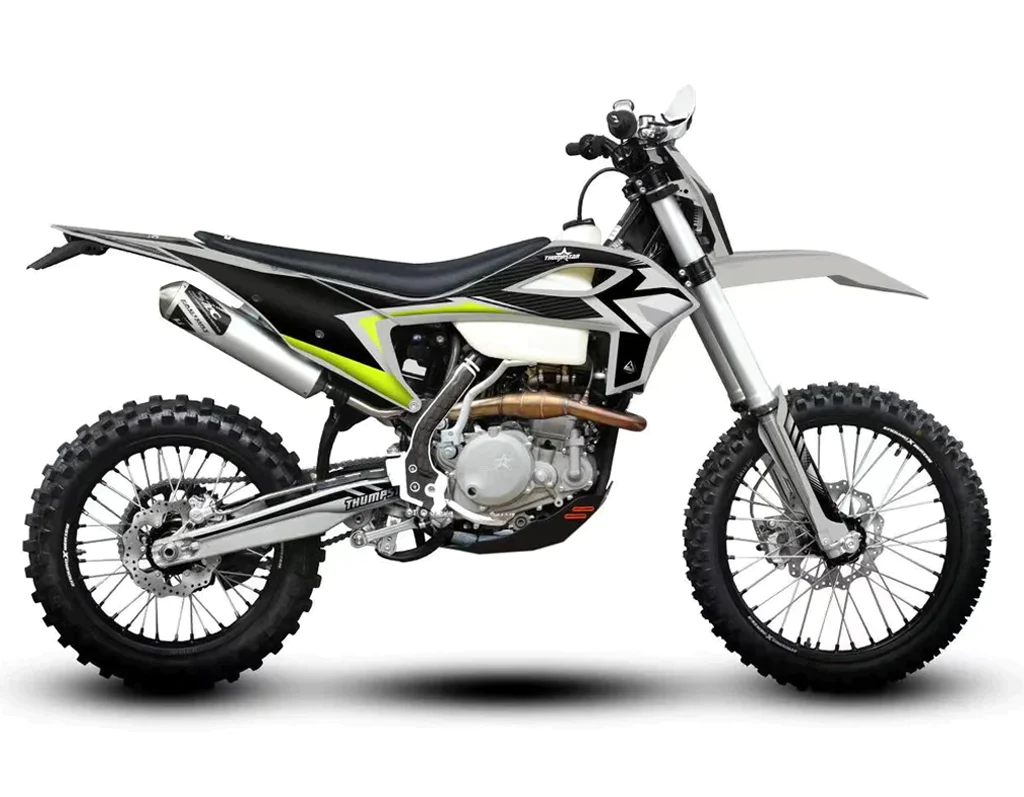

Thumpstar TSF 300 N1
Key specifications
Engine
300 cc
Fuel type
petrol
Fuel capacity
2.5 L
Transmission
6-speed
Seat height
37 mm
Front brakes
Single disc. Dual Piston
Rear brakes
Single disc. Single piston
Technical details
Source specification data
- Make
- Thumpstar
- Model
- TSF 300 N1
- Category
- Trial
- Starter
- Electric & kick
- Comments
- Chinese bike sold in Australia.
- Color Options
- Black/white/green
- Gearbox
- 6-speed
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection. PE 28mm
- Displacement
- 300.0 ccm (18.31 cubic inches)
- Cooling System
- Liquid
- Exhaust System
- Header and Muffler
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 940 mm (37.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.50 litres (2.51 US gallons)
- Weight Incl Oil Gas Etc
- 113.0 kg (249.1 pounds)
- Wheels
- Alloy rims
- Rear Tyre
- 100/90-18
- Front Tyre
- 80/100-21
- Rear Brakes
- Single disc. Single piston
- Front Brakes
- Single disc. Dual Piston
- Rear Suspension
- Linkage, spring preload w/ fully adjustable compression and rebound
- Front Suspension
- Telescopic
- ,
- Cartridge Type
- ,
- Compression
- and
- Rebound Adjustable
- .
- Rear Wheel Travel
- 300 mm (11.8 inches)
- Front Wheel Travel
- 310 mm (12.2 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Black/white/green
