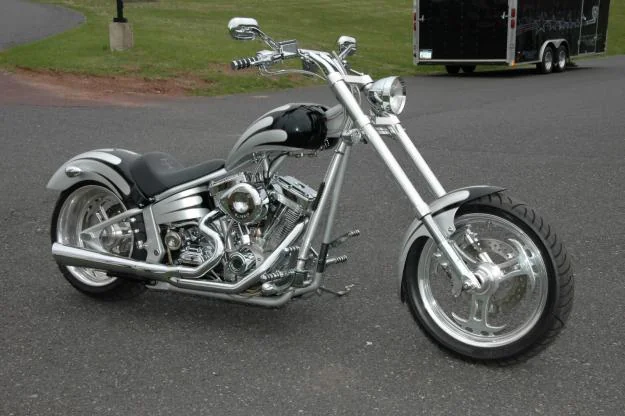

Titan Sidewinder Lowrider Softail

Key specifications

Engine

1750 cc

Power

112 HP

Torque

121 Nm

Weight

295 kg

Fuel type

petrol

Fuel capacity

4.6 L

Transmission

6-speed

Seat height

24 mm

Front brakes

Single disc. 4-piston caliper

Rear brakes

Single disc. 4-piston caliper

Technical details

Source specification data

Make: Titan
Model: Sidewinder Lowrider Softail
Category: Custom-cruiser

Power

112.00 HP (81.8 kW)) @ 5500 RPM

Torque

121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 4000 RPM

Gearbox

6-speed

Fuel System

Carburettor. S and S series G

Bore X Stroke

101.6 x 113.0 mm (4.0 x 4.5 inches)

Displacement

1750.00 ccm (106.79 cubic inches)

Cooling System

Air

Engine Details

V2, four-stroke

Fuel Consumption

7.35 litres/100 km (13.6 km/l or 32.00 mpg)

Greenhouse Gases

O2: g/km. (
O2: -
Carbon: dioxide emission)

Valves Per Cylinder

Transmission Type Final Drive

Chain

Dry Weight: 294.8 kg (650.0 pounds)
Seat Height: 610 mm (24.0 inches) If adjustable, lowest setting.
Fuel Capacity: 17.41 litres (4.60 gallons)
Ground Clearance: 102 mm (4.0 inches)
Power Weight Ratio: 0.3799 HP/kg

Rake: 35.0°
Rear Tyre: 250-18
Front Tyre: 110/90-19
Rear Brakes: Single disc. 4-piston caliper
Front Brakes: Single disc. 4-piston caliper
Rear Suspension: Dual chromed agusta shocks
Front Suspension: inverted forks
Rear Brakes Diameter: 292 mm (11.5 inches)
Front Brakes Diameter: 330 mm (13.0 inches)
