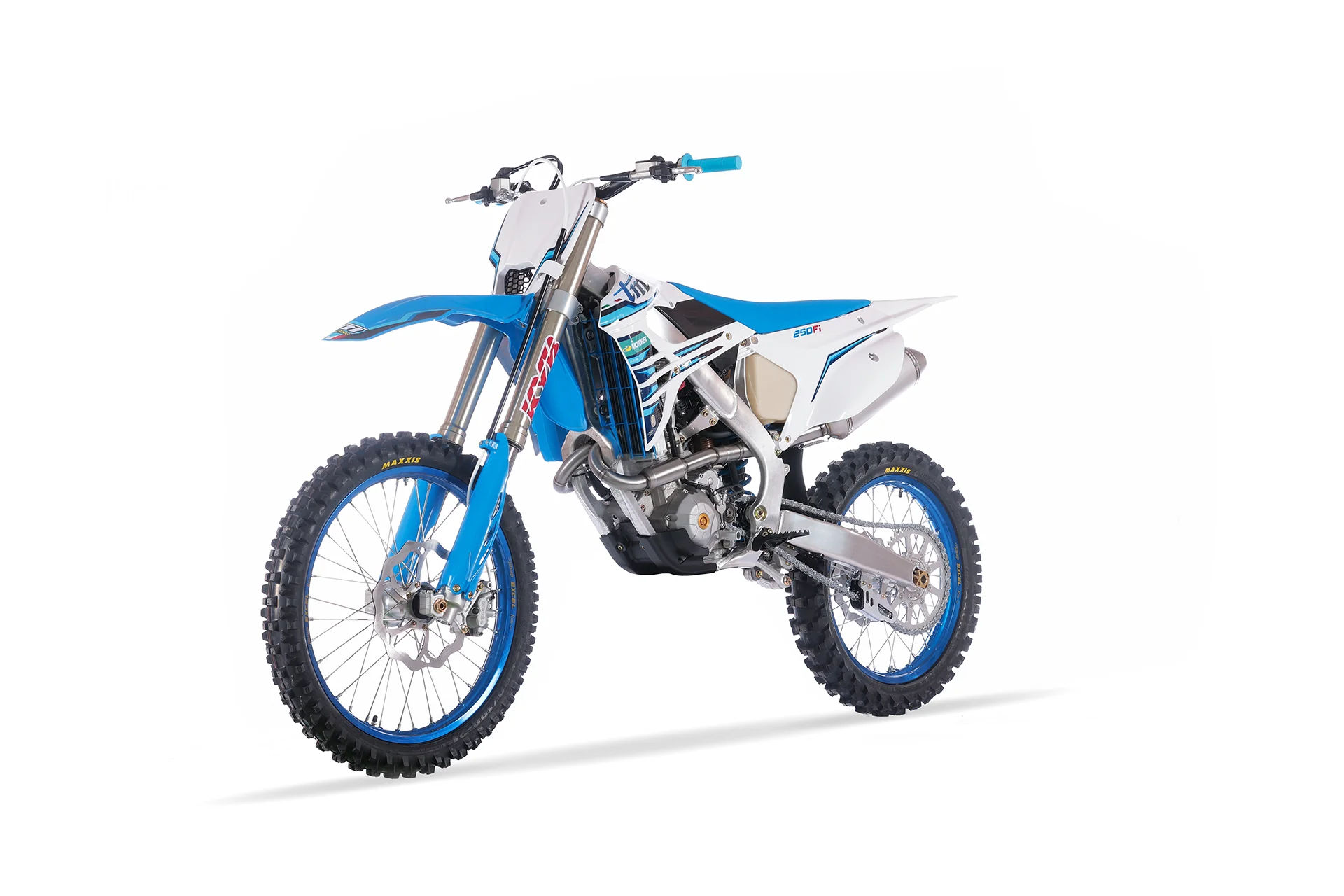

TM Racing MX 250 ES Fi 4T
Key specifications
Engine
250 cc
Weight
102 kg
Fuel type
petrol
Fuel capacity
2.0 L
Transmission
5-speed
Seat height
38 mm
Front brakes
Single disc. Brembo
Rear brakes
Single disc. Nissin
Technical details
Source specification data
- Make
- TM Racing
- Model
- MX 250 ES Fi 4T
- Category
- Cross-motocross
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Blue/white
- Clutch
- Multiple-disk in oil bath with hydraulic control
- Gearbox
- 5-speed
- Ignition
- eMoticom
- Driveline
- Regina GPX chain.
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 77.0 x 53.6 mm (3.0 x 2.1 inches)
- Displacement
- 249.6 ccm (15.23 cubic inches)
- Cooling System
- Liquid
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 102.0 kg (224.9 pounds)
- Seat Height
- 970 mm (38.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.50 litres (1.98 US gallons)
- Ground Clearance
- 355 mm (14.0 inches)
- Wheels
- Wire spoked. Blue rims.
- Rear Tyre
- 110/90-19
- Frame Type
- Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
- Front Tyre
- 80/100-21
- Rear Brakes
- Single disc. Nissin
- Front Brakes
- Single disc. Brembo
- Rear Suspension
- TM Racing
- Front Suspension
- Kayaba 48 mm
- Rear Wheel Travel
- 300 mm (11.8 inches)
- Front Wheel Travel
- 310 mm (12.2 inches)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
Available colors
Blue/white
