Back to Bike FinderYears: 2024 · 2023
2024Off-road

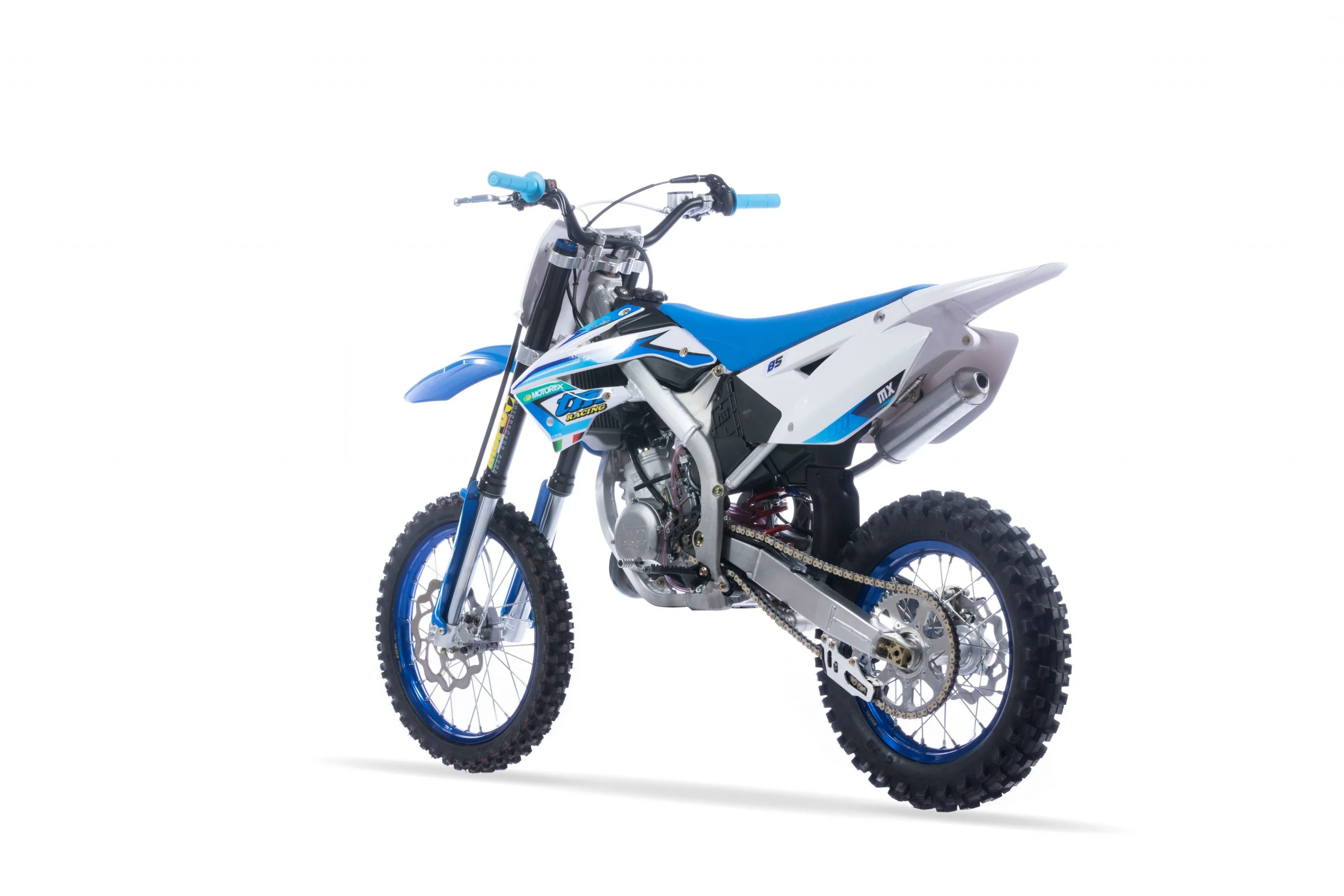

TM Racing MX 85 2T Junior
Key specifications
Weight
72 kg
Fuel type
petrol
Fuel capacity
1.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TM Racing
- Model
- MX 85 2T Junior
- Category
- Cross-motocross
- Starter
- Kick
- Comments
- Italian brand.
- Color Options
- Blue/white
- Clutch
- Multiple-disk in oil bath with hydraulic control
- Gearbox
- 6-speed
- Ignition
- Kokusan
- Driveline
- Regina RX3 chain
- Fuel System
- Carburettor. Keihin 28
- Bore X Stroke
- 48.0 x 47.0 mm (1.9 x 1.9 inches)
- Cooling System
- Liquid
- Engine Details
- Reed valve
- Lubrication System
- 3.5% oil mixture
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 72.0 kg (158.7 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.00 litres (1.59 US gallons)
- Ground Clearance
- 270 mm (10.6 inches)
- Rear Tyre
- 90/100-14
- Frame Type
- Self-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
- Front Tyre
- 70/100-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Extreme Shox
- Front Suspension
- Mupo Ø 38 mm
- Front Wheel Travel
- 270 mm (10.6 inches)
- Rear Brakes Diameter
- 190 mm (7.5 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Blue/white
