2019Super Moto

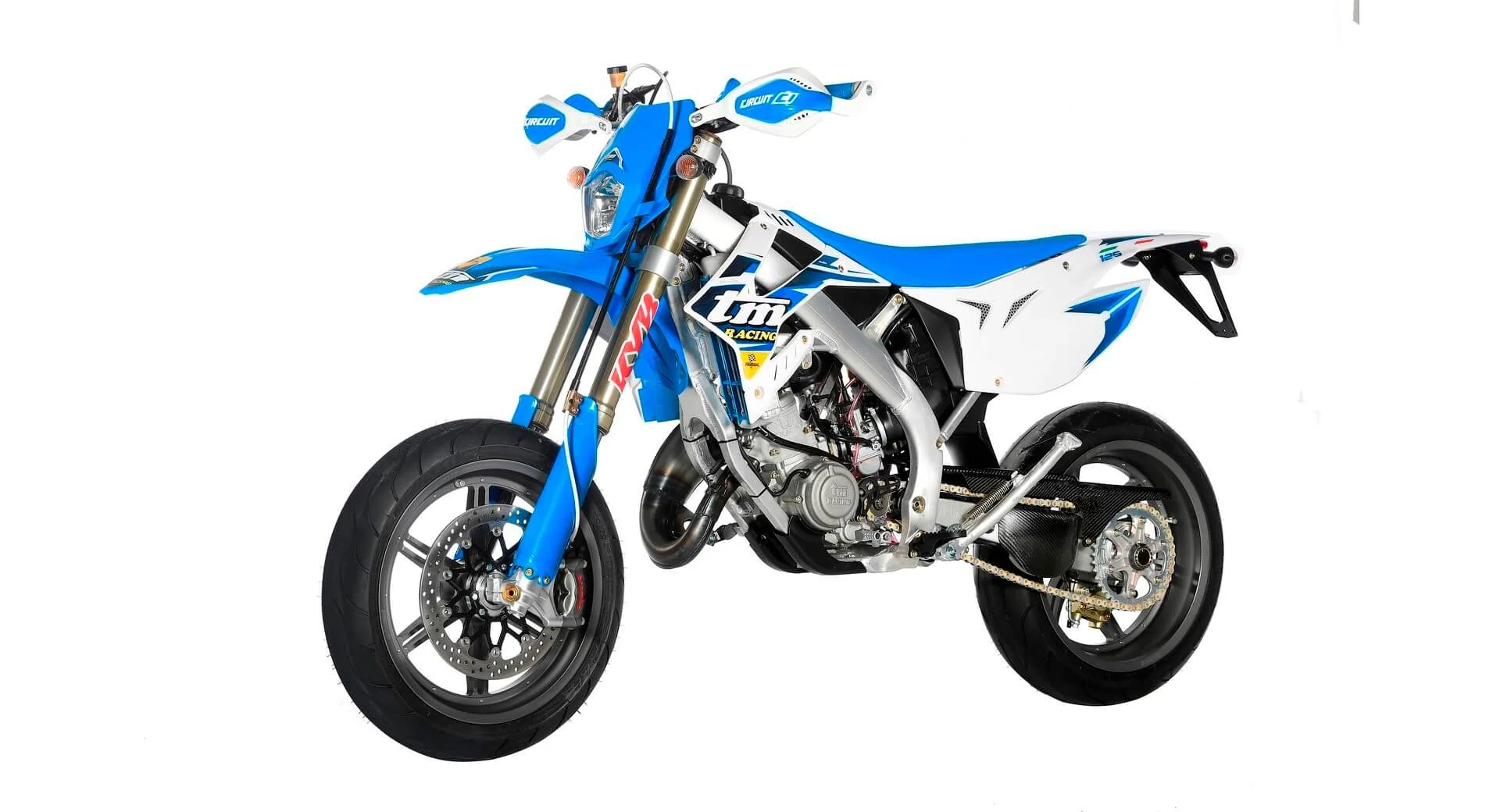

TM Racing SMM 300
Key specifications
Engine
294 cc
Fuel type
petrol
Fuel capacity
2.5 L
Transmission
5-speed
Front brakes
Single disc. Wave disc.
Rear brakes
Single disc. Wave disc.
Technical details
Source specification data
- Make
- TM Racing
- Model
- SMM 300
- Category
- Super motard
- Starter
- Kick
- Comments
- Italian brand.
- Color Options
- Blue/white
- Clutch
- Multiple-disk in oil bath with hydraulic control
- Gearbox
- 5-speed
- Ignition
- Kokusan CDI Electronic with variable advance with two selectable maps through handlebar switch
- Driveline
- Straight – tooth gear
- Engine Type
- V-Force Reed Valve
- Fuel System
- Carburettor. Keihin PWM 38
- Bore X Stroke
- 72.0 x 72.0 mm (2.8 x 2.8 inches)
- Displacement
- 294.00 ccm (17.94 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- 3,5% oil mix
- Transmission Type Final Drive
- Chain
- Fuel Capacity
- 9.50 litres (2.51 gallons)
- Rear Tyre
- 150/60-17
- Frame Type
- Perimetral aluminium section
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc. Wave disc.
- Front Brakes
- Single disc. Wave disc.
- Rear Suspension
- Sachs. Optional Ohlins/TTX o TM Racing.
- Front Suspension
- Kayaba USD
- Front Wheel Travel
- 48 mm (1.9 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Blue/white
