Back to Bike FinderYears: 2016
2016Super Moto

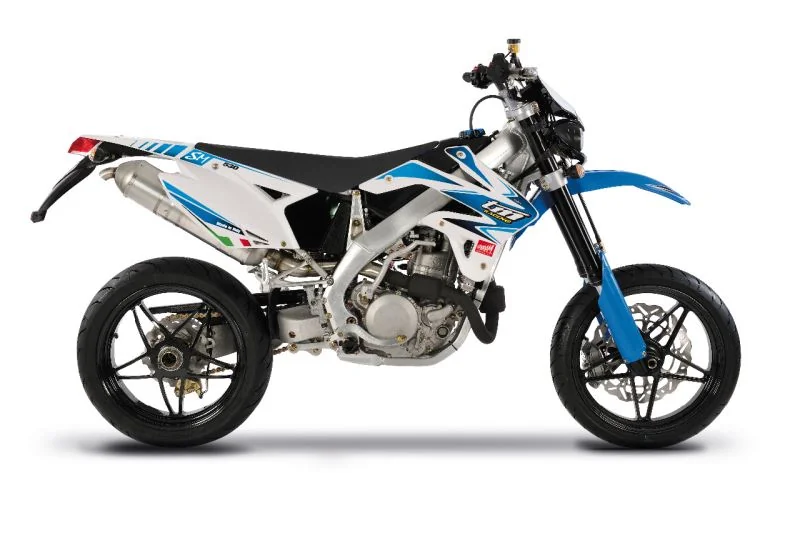

TM Racing SMM 530F
Key specifications
Engine
528 cc
Fuel type
petrol
Fuel capacity
2.2 L
Transmission
5-speed
Front brakes
Single disc. Bremo, wave disc
Rear brakes
Single disc. Nissin, wave disc
Technical details
Source specification data
- Make
- TM Racing
- Model
- SMM 530F
- Category
- Super motard
- Light
- No lights
- Starter
- Kick
- Comments
- Optional electric start. Italian brand.
- Color Options
- Blue/white
- Clutch
- Multiple-disk in oil-bath with hydraulic control
- Gearbox
- 5-speed
- Ignition
- Kokusan DCI Electronic with variable advance
- Driveline
- Straight, tooth gear
- Fuel System
- Carburettor. Keihin 41 mm Carburettor
- Bore X Stroke
- 98.0 x 70.0 mm (3.9 x 2.8 inches)
- Displacement
- 528.00 ccm (32.22 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Dry sump with 2 pump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Fuel Capacity
- 8.20 litres (2.17 gallons)
- Wheels
- Cast aluminium alloy 6-spoke
- Rear Tyre
- 150/60-ZR17
- Frame Type
- Alluminium perimetral
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Nissin, wave disc
- Front Brakes
- Single disc. Bremo, wave disc
- Rear Suspension
- Sachs (optional TM Racing)
- Front Suspension
- D
- 45 mm (optional
- D
- 50 mm)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Blue/white
