Back to Bike FinderYears: 2016
2016Super Moto

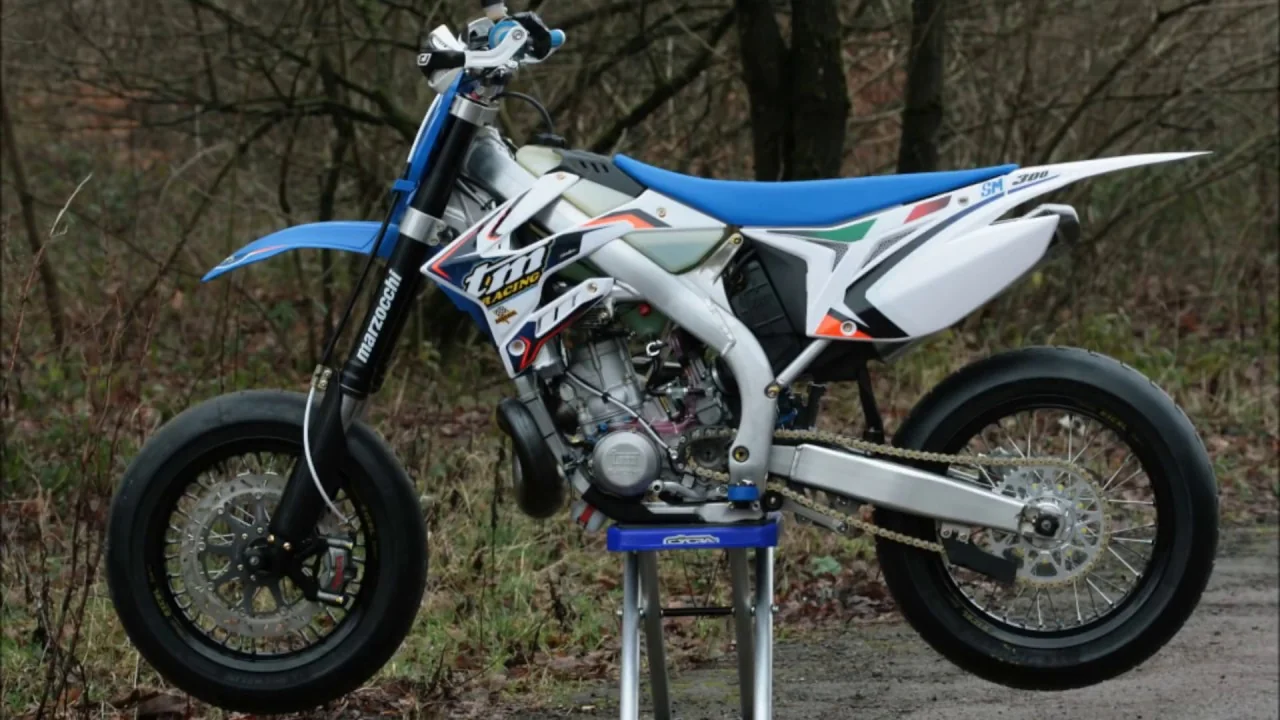

TM Racing SMX 300
Key specifications
Engine
295 cc
Fuel type
petrol
Fuel capacity
2.3 L
Transmission
5-speed
Front brakes
Single disc. Wave disk with Nissin pump and Brembo caliper
Rear brakes
Single disc. Wave disk with Nissin pump and caliper
Technical details
Source specification data
- Make
- TM Racing
- Model
- SMX 300
- Category
- Super motard
- Starter
- Kick
- Comments
- Italian brand.
- Color Options
- Blue/white
- Clutch
- Multiple-disk in oil-bath with hydaulic control
- Gearbox
- 5-speed
- Ignition
- Kokusan CDI Electronic with variable advance with two selectable maps
- Driveline
- Straight – tooth gear
- Engine Type
- V-Force Reed Valve
- Fuel System
- Carburettor. Keihin PWM 38
- Bore X Stroke
- 72.0 x 72.0 mm (2.8 x 2.8 inches)
- Displacement
- 294.50 ccm (17.97 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- 3,5% oil mix
- Transmission Type Final Drive
- Chain
- Fuel Capacity
- 8.70 litres (2.30 gallons)
- Rear Tyre
- 110/90-19
- Frame Type
- Alluminium perimetral frame
- Front Tyre
- 100/90-21
- Rear Brakes
- Single
- disc.
- Wave
- disk with
- Nissin
- pump and caliper
- Front Brakes
- Single
- disc.
- Wave
- disk with
- Nissin
- pump and
- Brembo
- caliper
- Rear Suspension
- TM Racing monoshock
- Front Suspension
- D
- 50 mm (optional
- D
- 48 mm)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
Available colors
Blue/white
