Back to Bike FinderYears: 2011
2011ATV

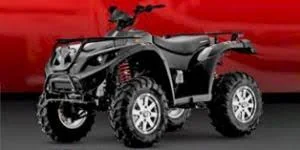

Tomberlin SDX 150 ATV
Key specifications
Engine
147 cc
Power
9 HP
Weight
236 kg
Fuel type
petrol
Fuel capacity
4.2 L
Seat height
34 mm
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic
Technical details
Source specification data
- Make
- Tomberlin
- Model
- SDX 150 ATV
- Category
- ATV
- Light
- Dual front lights
- Starter
- Electric
- Carrying Capacity
- Maximum Load
- : 257 lbs.
- Rear Rack Max Load
- : 20lbs.
- Power
- 8.80 HP (6.4 kW))
- Fuel System
- Carburettor. ENI
- Bore X Stroke
- 57.0 x 57.8 mm (2.2 x 2.3 inches)
- Compression
- 9.2:1
- Displacement
- 147.30 ccm (8.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Forced Pressure Wet Sump
- Transmission Type Final Drive
- Belt
- Dry Weight
- 236.3 kg (521.0 pounds)
- Seat Height
- 869 mm (34.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.90 litres (4.20 gallons)
- Power Weight Ratio
- 0.0372 HP/kg
- Rear Tyre
- 22/10-10
- Front Tyre
- 22/7-10
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Single disc. Hydraulic
- Rear Suspension
- Swingarm, Coil Over Shock
- Front Suspension
- MacPherson Strut, Single A-Arm
